Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPM2.5-XX-508-08

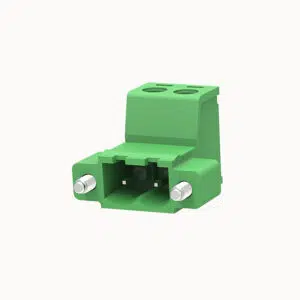

Plug in Terminal Block | Multi-Pin Connector | FPM2.5-XX-508-08

Plug in Terminal Block Multi-Pin Connector

Rated current: 15 A
Rated voltage: 300 V
Pitch:5.0mm/5.08mm

Add to quote

Product certification

Replacement Compatibility

  • Series Description: Double-level 5.08mm pitch Push-in plug
  • Alternative Models: 2EDGB

Product Advantages

  • ☑ Double-level design doubles the connection density in a minimal footprint.
  • ☑ Tool-free Push-in connection on both levels for fast wiring of complex signals.
  • ☑ Ideal for saving space in crowded control cabinets.

Application Scenarios

  • Signal-dense control systems
  • Distributed I/O modules
  • Compact automation equipment


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 15A





Electrical parameters lEC

Rated voltage 320V
Rated voltage(III/3) 320V
Rated current 20A
Rated voltage(III/2) 320V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 2.599
03P 3.317
04P 4.029
06P 5.453
08P 6.877
09P 7.589
10P 8.301
15P 11.861
16P 12.573
20P 15.421
FPM2.5-XX-508-08AOSI.pdf
PDF Download
