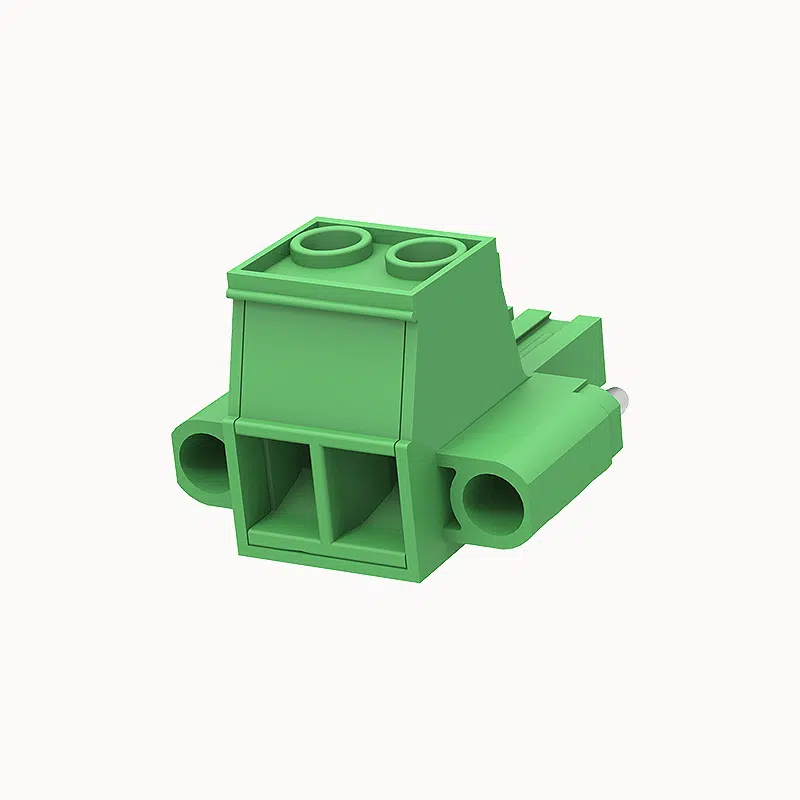

High Current Terminal Block | Reliable Solder Pins | FPC4-XX-1016-00M

High Current Terminal Block Reliable Solder Pins

Rated current:57A
Rated voltage (III/3):600V
pitch:10.16mm

Add to quote

Product certification

Replacement Compatibility

  • General Type: Extra-wide 10.16mm high-power series with mounting flange
  • Alternative Models: 5EDGKM

Product Advantages

  • ☑ Combines extra-wide pitch for high voltage with flanges for maximum mechanical security.
  • ☑ Designed for large wire gauges to handle very high current loads.
  • ☑ Ensures ultimate reliability for critical power connections in harsh environments.

Application Scenarios

  • High-voltage industrial drives
  • Power generation and distribution systems
  • Heavy-duty machinery

Connection capacity

Conductor cross section solid 0.5~1.5mm²
Conductor cross section flexible 0.5~1.5mm²
AWG 28~16AWG
Torque 0.2N.m
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M2
Pitch 10.16mm
Number of potentials 2-12
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 18.865
03P 29.271
04P 36.402
05P 44.693
06P 52.824
07P 61.528
08P 67.066
09P 74.977
FPC4-XX-1016-00MAOSI.pdf
PDF Download

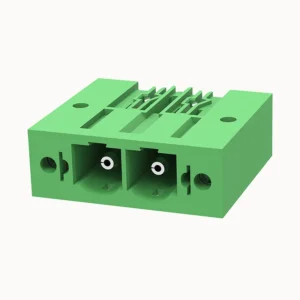

Male Plug in Terminal Block | PCB Mountable | FPM4-XX-1016-04R

Rated current:57A Rated voltage (Ⅲ/3):600V pitch:10.16mm
Know More

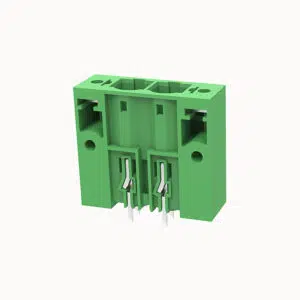

Modular Male Terminal Block | Compact Design | FPM4-XX-1016-04
