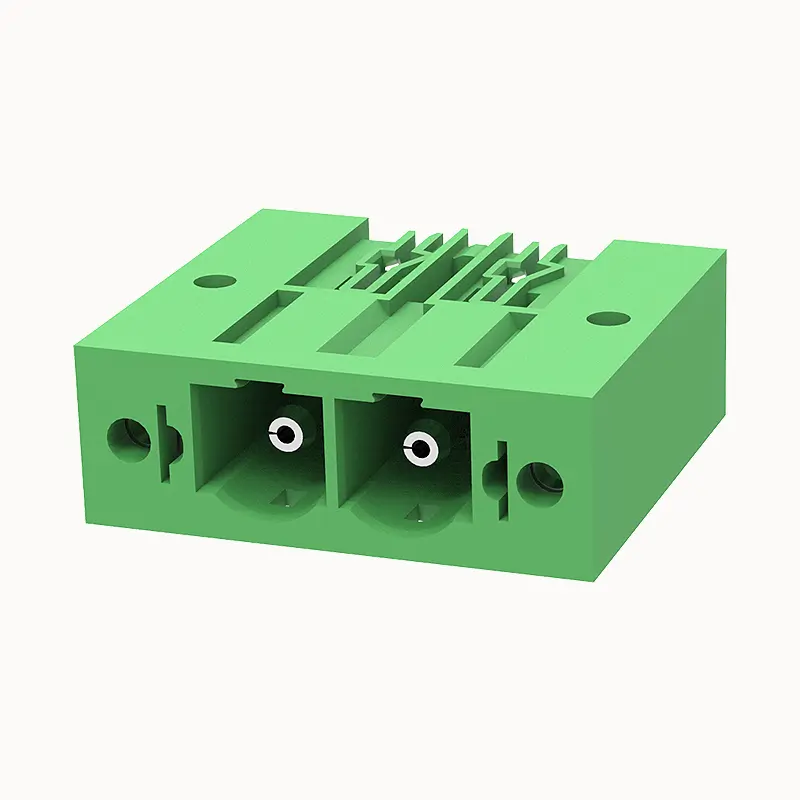

Male Plug in Terminal Block | PCB Mountable | FPM4-XX-1016-04R

Male Plug in Terminal Block PCB Mountable

Rated current:57A
Rated voltage (Ⅲ/3):600V
pitch:10.16mm

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 10.16mm High-Current Push-in Plug with flanges and release levers
  • Alternative Models: 5EDGRM

Product Advantages

  • ☑ The ultimate feature set: maximum safety pitch, secure flange mounting, and effortless lever operation.
  • ☑ Provides an unparalleled combination of safety, reliability, and ease of use.
  • ☑ A top-tier solution for the most demanding applications.

Application Scenarios

  • High-end drive controllers
  • Power generation equipment
  • Mission-critical industrial automation


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 10.16mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Relative tracking index CTI 600V
Glow Wire Flammability Index GWFI 850
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 13.521
03P 17.235
04P 20.95
05P 24.665
06P 28.38
07P 32.095
08P 34.61
09P 39.525
FPM4-XX-1016-04RAOSI.pdf
PDF Download
