Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  Push-in Spring Terminal Block with Flange FPS1.5-XX-350-27M
Dual Row Plug-in Wire Terminal

Flanged Dual Row Female Terminal Block for PCB

Pitch: 3.5mm
Rated current: 8A
Rated voltage：300V
Wire range: 28-16 AWG
Connection method: Push-in spring connection



Add to quote

Product certification

Replacement Compatibility

  • Compatible with Degson: 15EDGKNHBM series
  • Alternative to: Dual-row screwless plug-in blocks

Product Advantages

  • ☑ Dual-row structure fits dense wiring designs
  • ☑ PUSH-IN wiring with clear label slots
  • ☑ Compact black housing improves thermal control

Application Scenarios

  • DC power distribution
  • Smart grid terminals
  • Automation PLC cabinets

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 28~16AWG
Strip length 11mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 10A
Rated current (D) 10A
Rated current (C) 10A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 13.4A
Rated voltage(III/2) 160V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Connection method Push-in spring connection
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
04P 4.39
06P 5.73
08P 7.07
10P 8.41
12P 9.75
14P 11.09
16P 12.43
18P 13.77
20P 15.11
24P 17.79
26P 19.13
32P 23.15
36P 25.83
40P 28.51
48P 33.87
FPS1.5-XX-350-27MAOSI.pdf
PDF Download

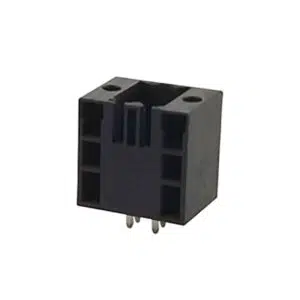

Plug-in Terminal Block | UL Listed Manufacturer, Dual Flange | FPH1.5-XX-350-29R

Rated current: 7A Rated voltage: 150 V Pitch: 3.5mm
Know More

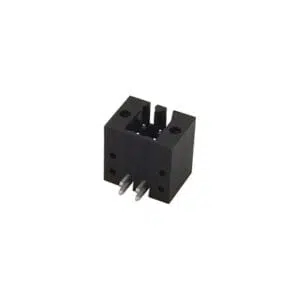

Pluggable Terminal Block alternative to Phoenix Contact | Right Angle Solder Legs | FPH1.5-XX-350-29
