Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPC2.5-XX-508-15

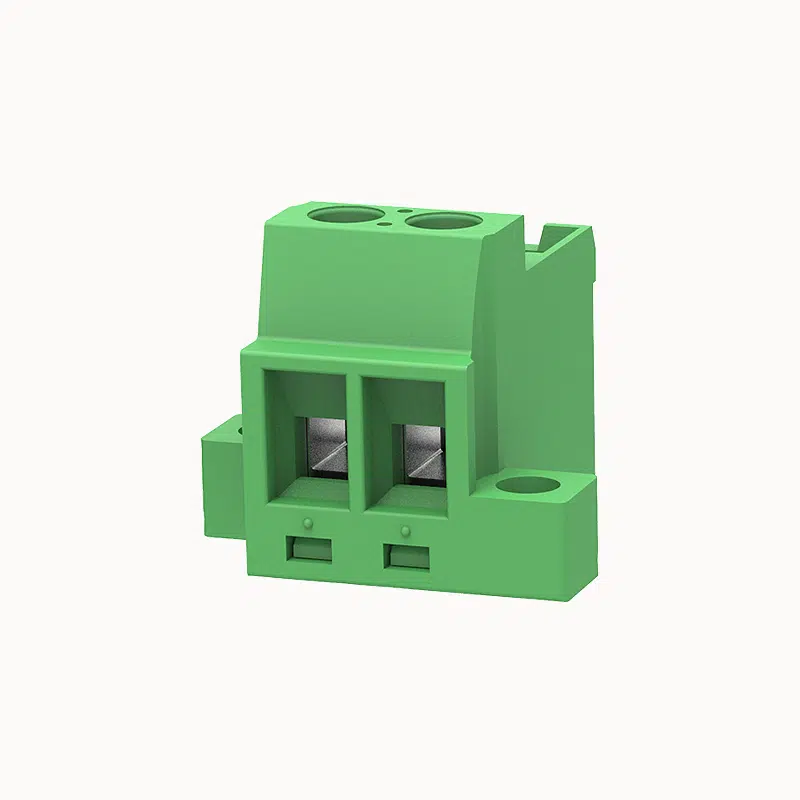

Spring-loaded Pluggable Terminal Block | High Current Capacity | FPC2.5-XX-508-15

Spring-loaded Pluggable Terminal Block High Current Capacity

Rated current:12A

Rated voltage （III/2）:320V

pitch:5.08mm

Color:green

Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Compatible Type: 5.08mm Pitch Side Wire Entry Pluggable Terminal Block
  • Alternative Models: 2EDG-DB

Product Advantages

  • ☑ Universal 5.08mm pitch for broad compatibility.
  • ☑ Classic screw connection for reliable and easy operation.
  • ☑ Modular design available in various positions.

Application Scenarios

  • Industrial control systems
  • Instrumentation
  • Power modules

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~2.5mm²
AWG 28~12AWG
Torque 0.6N.m
Strip length 8mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated voltage(III/3) 250V
Rated current 12A
Rated voltage(III/2) 320V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





ltem properties

Connection direction 0°
Pin arrangement Single row in a straight line
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M3
Pitch 5.08mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 4.8333
03P 6.875
04P 8.8271
05P 11.3709
06P 13.3653
10P 23.5
12P 25.7407
13P 27.8846
14P 30
16P 32.8517
20P 39.4117
24P 50
FPC2.5-XX-508-15AOSI.pdf
PDF Download
