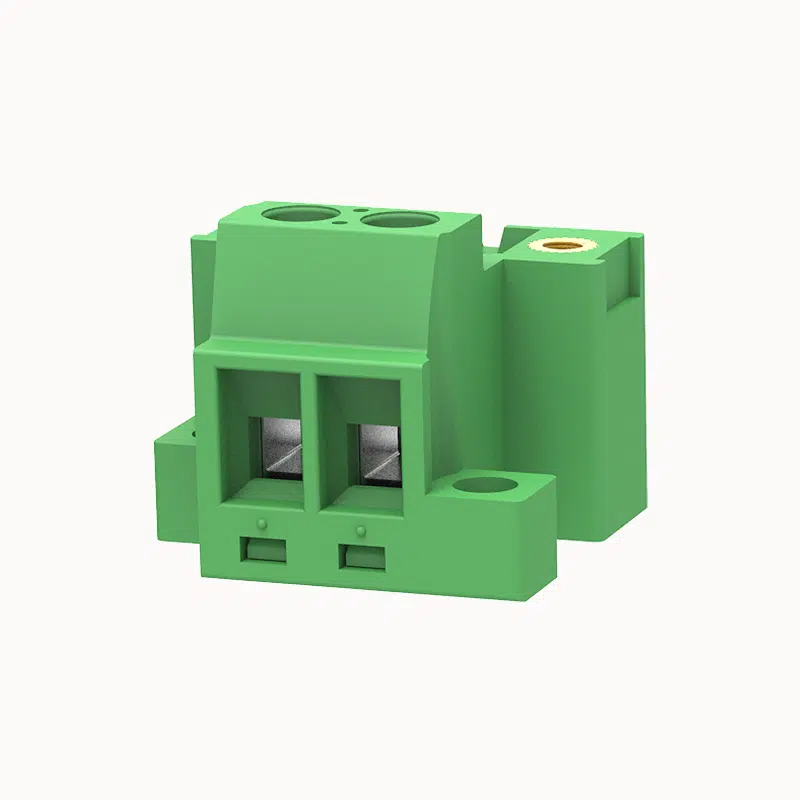

Tool-free Pluggable Terminal Block | Factory Price Available | FPC2.5-XX-508-15P

Tool-free Pluggable Terminal Block Factory Price Available

Rated current:12A

Rated voltage （III/2）:320V

pitch:5.08mm

Color:green

Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Compatible Type: 5.08mm Pluggable Terminal Block with Anti-Loosening Lock
  • Alternative Models: 2EDG-DBM

Product Advantages

  • ☑ Features a side locking mechanism to prevent accidental disconnection for a more stable connection.
  • ☑ Suitable for applications with vibration or requiring high reliability.
  • ☑ Maintains the convenience of a quick plug-in connection.

Application Scenarios

  • Motion control equipment
  • Inverters and servo drives
  • Transportation vehicles

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~2.5mm²
AWG 28~12AWG
Torque 0.6N.m
Strip length 8mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated voltage(III/3) 250V
Rated current 12A
Rated voltage(III/2) 320V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





ltem properties

Connection direction 0°
Pin arrangement Single row in a straight line
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M3
Pitch 5.08mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 5.7407
03P 7.7778
04P 9.8611
05P 11.8644
06P 14
07P 16
08P 18.0769
09P 20.1389
10P 22.1875
12P 26.2963
14P 30.4074
16P 34.5185
18P 38.6364
20P 42.5
FPC2.5-XX-508-15PAOSI.pdf
PDF Download
