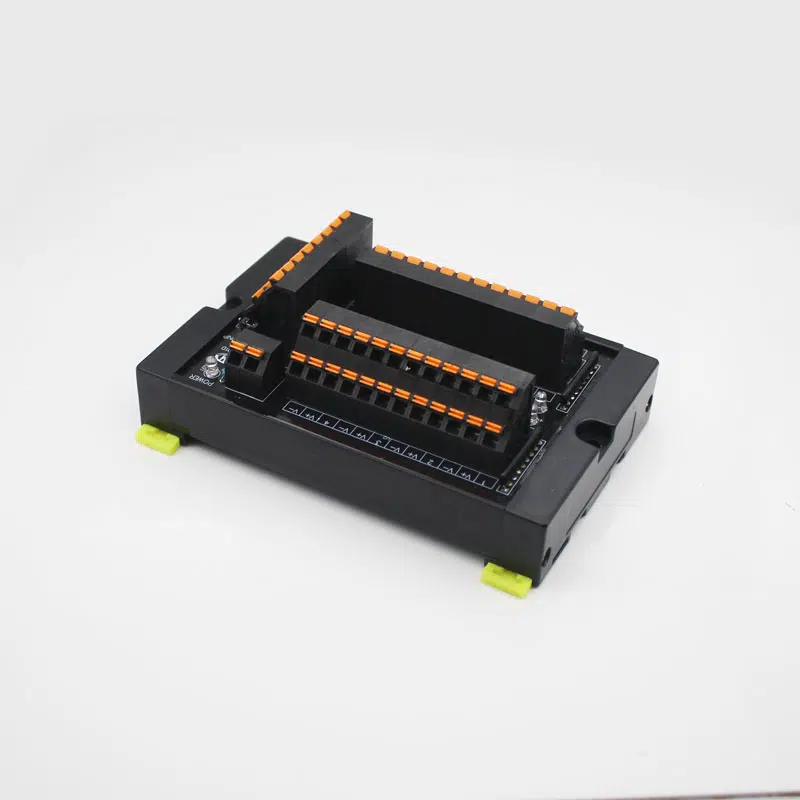

12-Channel Sensor Terminal Block with Spring Clamp

Product Function: I/0 input-output sensor terminal box
Rated Voltage: DC24V
Input max current(single-channel): 1A
Input terminal interface/usable wire diameter: 24-12AWG/0.5-2.5mm2
Output terminal interface/usable wire diameter: 24-12AWG/0.5-2.5mm2

Add to quote
Model（Spring） Specs Size（L*W*Hmm）
HPM01D 16Channel 120*76*44mm
FPM08D/M 8Channel 92*76*38.5mm
FPM12D/M 12Channel 114*76*38.5mm
FPM08D/M-E 8Channel(With flange) 114*76*38.5mm
FPM12D/M-E 12Channel(With flange) 162*76*38.5mm

Features:

Terminal block makes is a terminal input panel,applicable to the connection of all kinds of terminal input signals;
It has 16 sets input ports which can accept 2-wire or 3-wire system signals;
Terminal block is used to connect the controller,convenient for remote control;
Utilizes LED display operating status;
Support PNP and NPN(high/low-level signal)

Specifications:

Rated current 1A
Rated voltage DV24V
Wire range 1.5mm2 following / AWG16

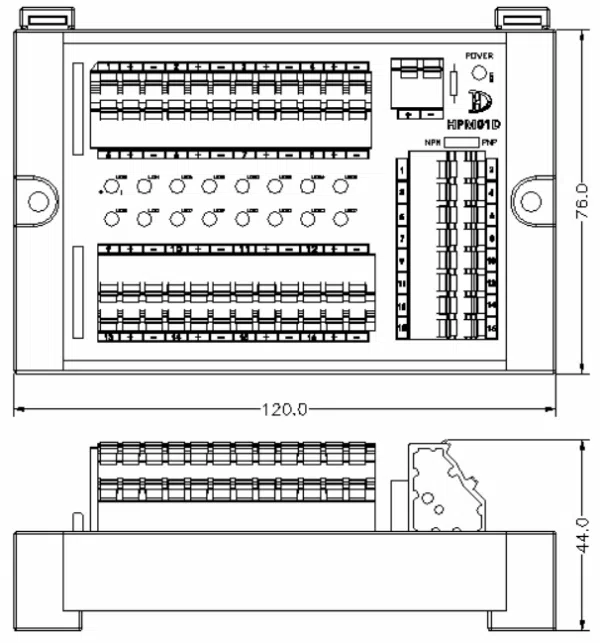

Dimension:

Wiring Diagram:

Wire stripping Recommendation:


MIL Jack Connector

Body Material PBTV-0
Terminal Material Copper Alloy
Plating Pin corners are fully gold plated
Reference Standard UL
Rated Current 2A
Contact resistance <20mΩ



European Terminal Blocks

Body Material PA66V-0
Terminal Material Phosphor copper
Plating Tin plated
Certification UL, CE, VDE
Rated Current 10A
Torque 0.4NM(3.5lb-in)



Terminal Body

Body Material PA66V-0
Cover material PC V-0
Fasteners PC V-0
Authenticate CE
Fixing screw material SUS304
PCB board material FR-4
