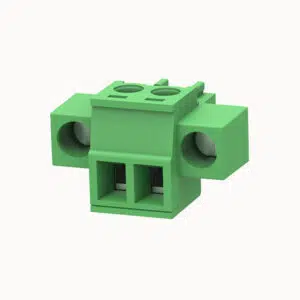

3.81mm Mating Terminal Connector | Releasable Plug Interface | FPC1.5-XX-381-17P

3.81mm Mating Terminal Connector Releasable Plug Interface

Rated current:7A.
Rated voltage (Ⅱ/2):250V
pitch:3.81mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Compatible with: Phoenix Contact IMC1.5/-STGF-3.81
  • Alternative to Dinkle: ECSH381VN
  • Replacement for Degson: 2EDGKR(P)

Product Advantages

  • ☑ SMD mounting for automated production lines
  • ☑ Side flange improves soldering strength
  • ☑ Released in 2P~12P (11P not available)

Application Scenarios

  • Compact control PCBs
  • Embedded automation terminals
  • Signal acquisition modules

Connection capacity

Conductor cross section solid 0.5~1.5mm²
Conductor cross section flexible 0.75~1.5mm²
AWG 28~16AWG
Torque 0.2N.m
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 300V
Rated current (B) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M2
Pitch 3.81mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

FPC1.5-XX-381-17PAOSI.pdf
PDF Download

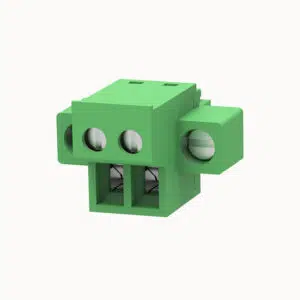

3.81mm Pluggable Terminal Block | 3.81mm Pitch for Dense Circuits | FPS1.5-XX-381-02M

Rated current:8A.Rated voltage (?/2):250V,Cross section:1.0mm?2,pitch:3.81mm,Color:green,Contact surface :Tin
Know More

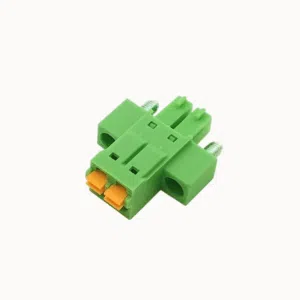

Pcb Terminal Block Supplier China | Spring Clamp Connection | FPC1.5-XX-381-00M

Rated current:8A Rated voltage:300 V Pitch: 3.81mm
Know More

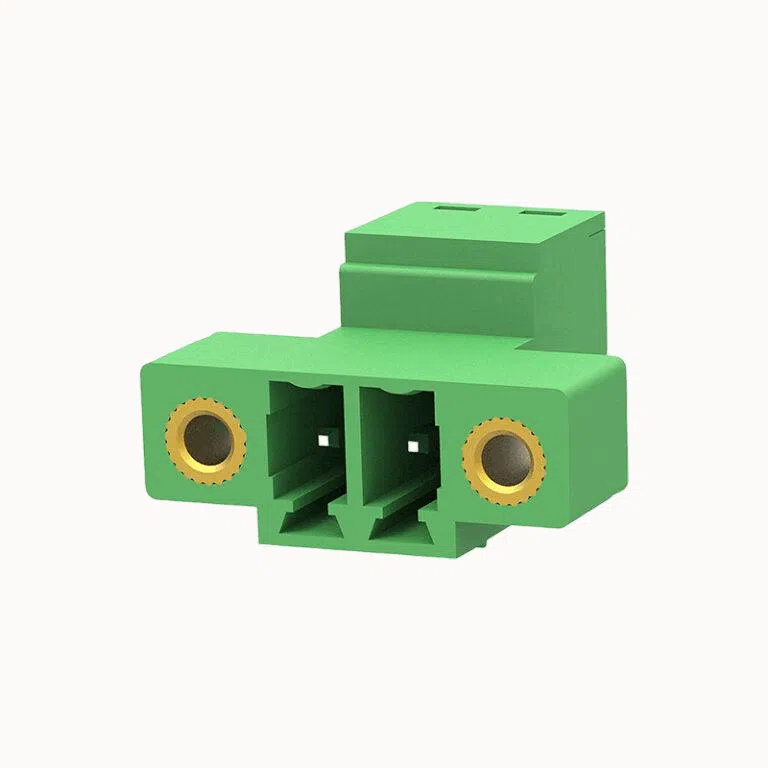

PCb Pluggable Terminal Block Pair | Secure Interlock System | FPC1.5-XX-381-11M
