3.81mm Mating Terminal Connector | Mated Connector Design | FPH1.5-XX-381-00R

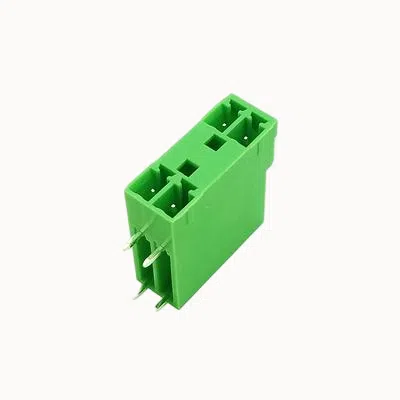

3.81mm Mating Terminal Connector Mated Connector Design

Rated current: 8 A
Rated voltage: 300 V
Pitch:3.5mm

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated voltage(III/3) 160V
Rated current 8A
Rated voltage(III/2) 250V
Rated voltage(II/2) 250V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact zone metal surface tin-plated
Insulation Materials PA66
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Relative humidity (storage/transport) 30% ~ 70%
Ambient temperature (assembly) -5℃~100℃
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
Ambient temperature (storage / transport) -40℃~70℃



Packing unit 500
MOQ 30
Weight (without packaging)

FPH1.5-XX-381-00RAOSI.pdf
PDF Download
