3.81mm Mating Terminal Connector | Paired Connection Block | FPM1.5-XX-381-13

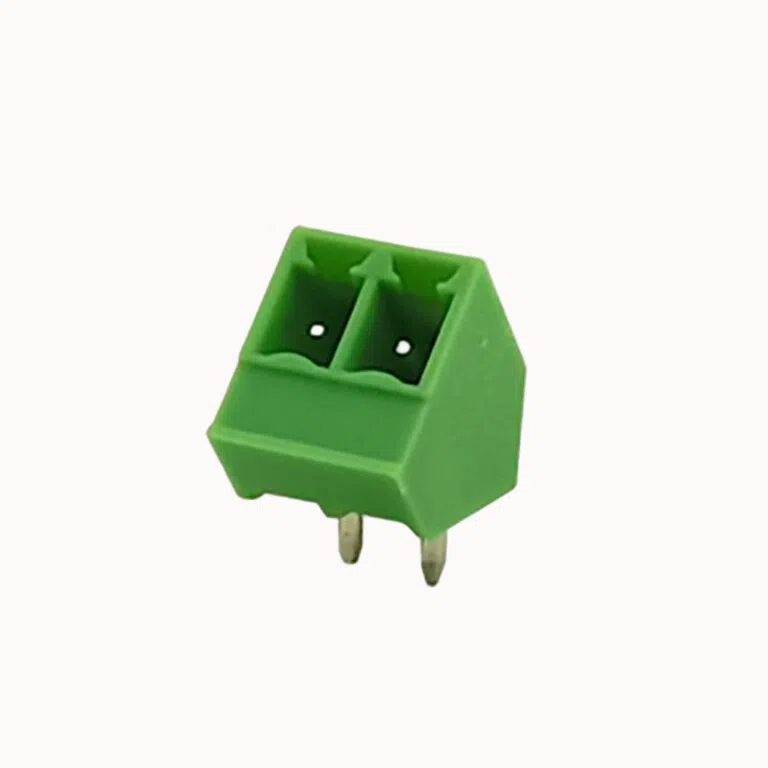

3.81mm Mating Terminal Connector Paired Connection Block

Rated current:8A
Rated voltage:300 V
Pitch: 3.81mm

Add to quote

Product certification

Pitch Option: 3.50mm / 3.81mm

Replacement Compatibility

  • Compatible with: Degson 15EDGLC
  • Alternative to: Space-saving side-entry terminal blocks

Product Advantages

  • ☑ Extremely low profile for height-restricted applications
  • ☑ Side-entry wiring with simple push-in spring connection
  • ☑ Lightweight and compact for modern electronic designs

Application Scenarios

  • LED lighting modules
  • IoT sensor nodes
  • Embedded control panels


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 12A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 45°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 3.81mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 0.58
03P 0.83
04P 1.06
05P 1.32
06P 1.56
07P 1.82
08P 2.06
09P 2.31
10P 2.56
11P 2.8
12P 3.05
13P 3.29
16P 4.55
FPM1.5-XX-381-13AOSI.pdf
PDF Download
