3-Chanel DC Power Distribution Spring terminal block | HM06-03D
3-Chanel DC Power Distribution Spring terminal block | HM06-03D - 图片 2

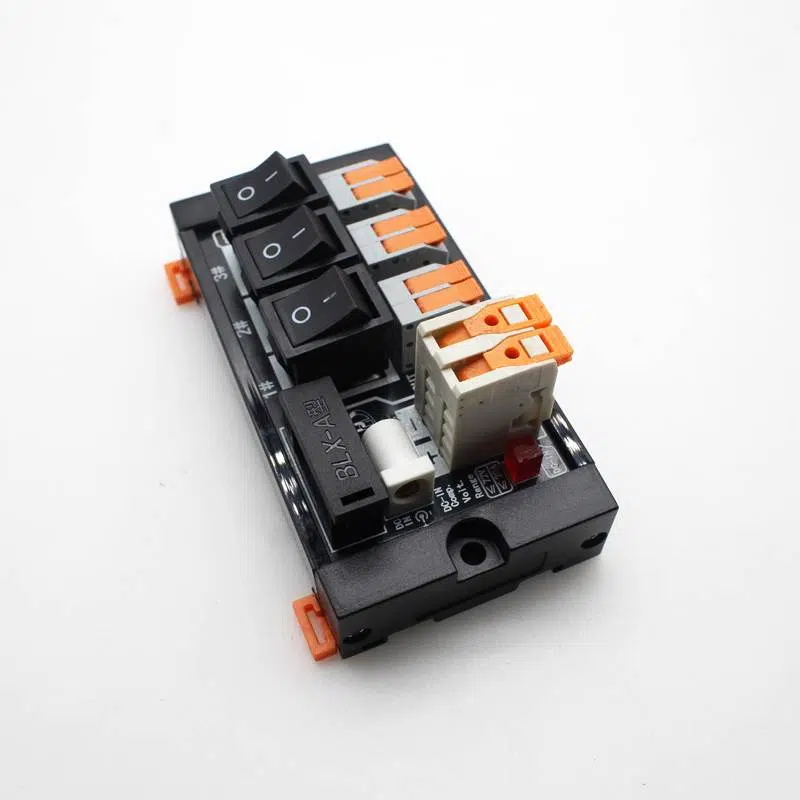

3-Chanel DC Power Distribution Spring terminal block

Product Function: Power switch distribution terminal box
Rated Voltage: 72V
Input max current(single-channel): 20A(single-channel: 8A)
Input terminal interface/usable wire diameter: 24-12AWG/0.5-6mm2
Output terminal interface/usable wire diameter: 24-12AWG/0.5-4mm2

Add to quote
Model（Spring） Type Size（L*W*Hmm）
HM06-02D 2Chanel 90*55*41.5mm
HM06-03D 3Chanel 106*55*41.5mm
HM06-04D 4Chanel 122.5*55*41.5mm
HM06-06D 6Chanel 155*55*41.5mm
HM06-08D 8Chanel 187.5*55*41.5mm
HM06-12D 12Chanel 252.5*55*41.5mm
HM06-16D 16Chanel 317.5*55*41.5mm

Use:

Application:Suitable for battery/switching power supply,DC switching and channel expansion.The switch can completely cut off the load with 2 wires.

Features:

Wiring efficiency is greatly enhanced;
Fully replace common connecting terminal block;
Neat wiring cabinet;

Operating function as follows:

1.Easy and efficient wiring way
2.Can be installed on TH35 and G-type rall
3.Frame way to put wiring in place

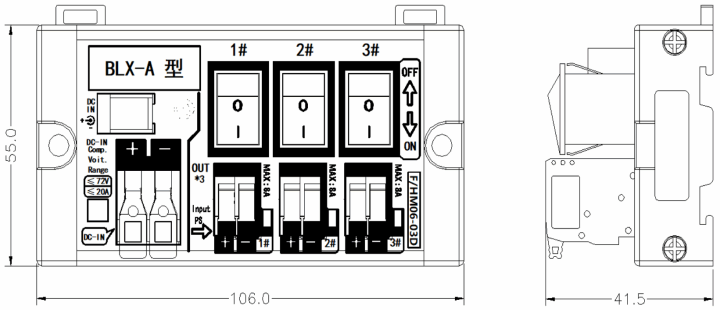

Dimension:

Wiring Diagram:

Wire stripping Recommendation:


MIL Jack Connector

Body Material PBTV-0
Terminal Material Copper Alloy
Plating Pin corners are fully gold plated
Reference Standard UL
Rated Current 2A
Contact resistance <20mΩ



European Terminal Blocks

Body Material PA66V-0
Terminal Material Phosphor copper
Plating Tin plated
Certification UL, CE, VDE
Rated Current 10A
Torque 0.4NM(3.5lb-in)



Terminal Body

Body Material PA66V-0
Cover material PC V-0
Fasteners PC V-0
Authenticate CE
Fixing screw material SUS304
PCB board material FR-4
