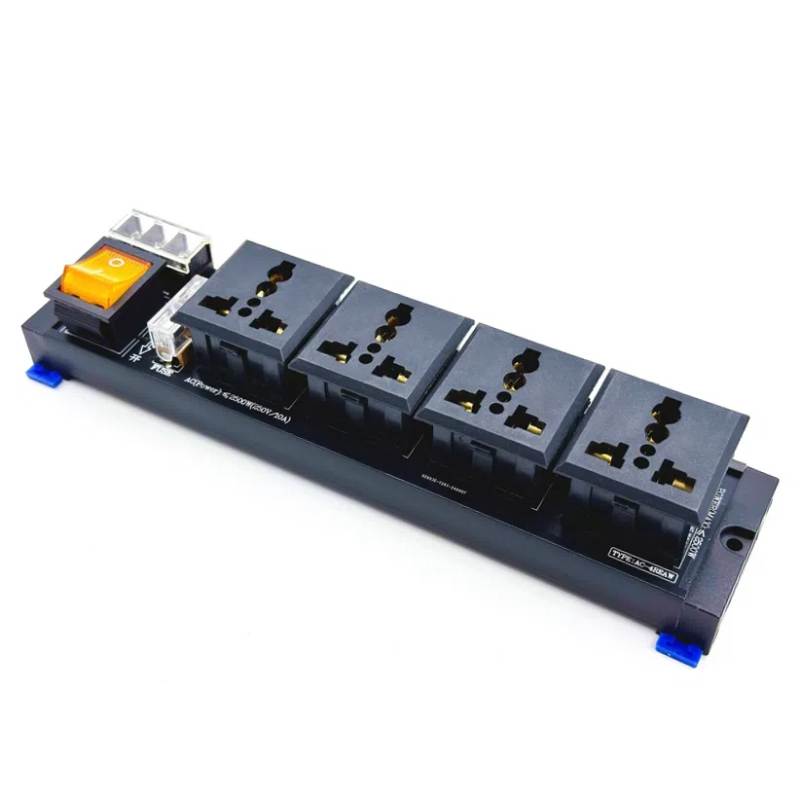

Product Function: Socket output terminal box
Rated Voltage: ≤ DC250V
Rated Current: ≤ 10A
Total power:The cumulative power of all channels must be ≤ 2500W
Input terminal interface/usable wire diameter: 24-12AWG/0.5-2.52
Output terminal interface/usable wire diameter: Adaptable plug.
| Model（Spring） | Type | Size（L*W*Hmm） |
| HM04-01D | 1Chanel | 112*55*44.3mm |
| HM04-02D | 2Chanel | 154*55*44.3mm |
| HM04-04D | 4Chanel | 238*55*44.3mm |
| HM04-06D | 6Chanel | 322*55*44.3mm |
| HM04-08D | 8Chanel | 406*55*44.3mm |
Use:
Features:
Operating function as follows:

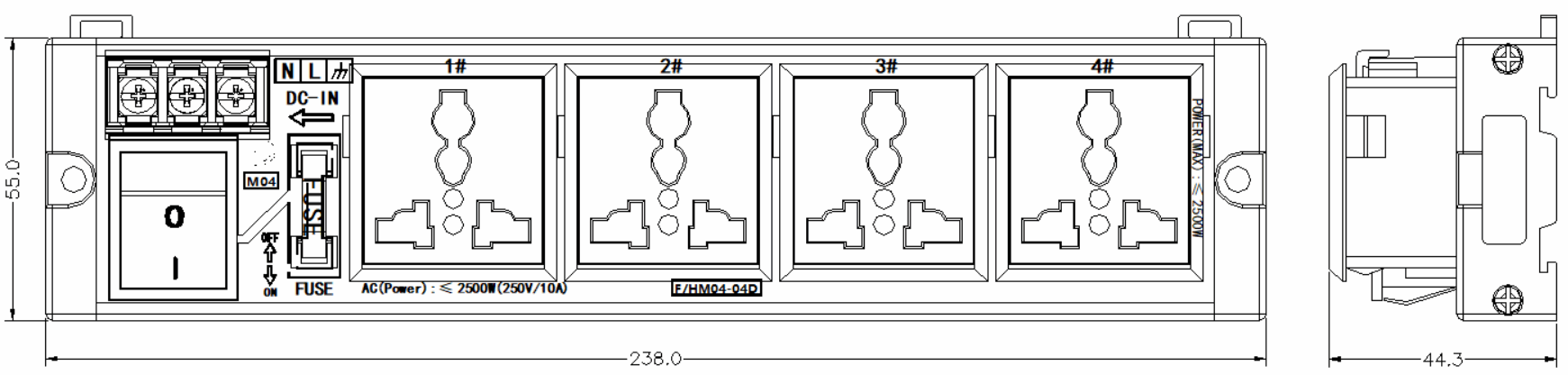

Dimension:
Wiring Diagram:
Wire stripping Recommendation:
