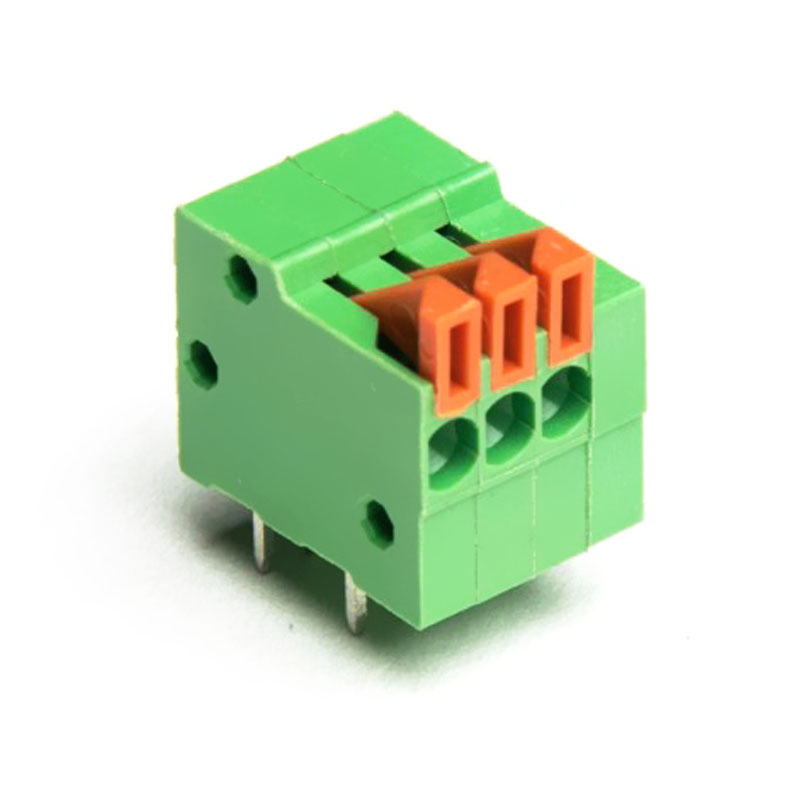

Alternative to Degson PCB Terminal Block

Alternative to Degson PCB Terminal Block 2.54mm Pitch Factory Direct

Rated current: 4 A
Rated voltage: 150 V
Wire range: 26-18 AWG
Pitch: 2.54 mm
Mounting: Wave soldering

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~1.0mm²
Conductor cross section flexible 0.2~1.0mm²
AWG 24~20AWG
Strip length 11mm







Electrical parameters UL

Rated voltage (B) 150V
Rated voltage (C) 150V
Rated voltage (D) 150V
Rated current (B) 2A
Rated current (D) 2A
Rated current (C) 2A









Electrical parameters lEC

Rated voltage 130V
Rated current 6A
Rated voltage(III/2) 130V
Rated power frequency voltage(1min) 1.25KV







ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Push-in spring connection
Pitch 2.54mm
Number of potentials 2~24P
Pluggable or not no
Number of rows 1







Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage / 130V /
Rated current / 6A /
Cross section / 0.2~1.0 /



UL parameters

Use group B C D
Rated voltage 150V 150V 150V
Rated current 2A 2A 2A
AWG 24~20 24~20 24~20





FS1-XX-254-01AOSI.pdf
PDF Download
