Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPC1.5-XX-381-17
Connector Pair for Pcb Wiring | Releasable Plug Interface | FPC1.5-XX-381-17

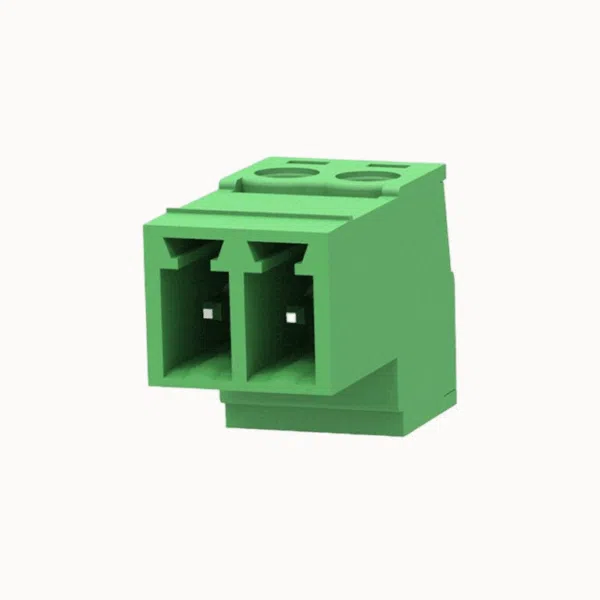

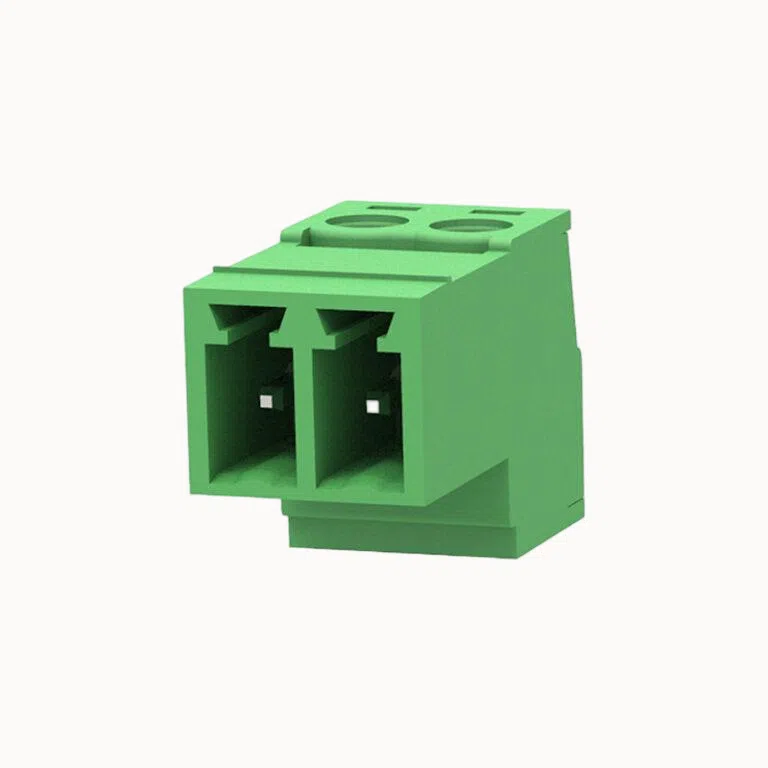

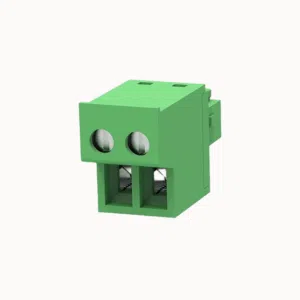

Connector Pair for Pcb Wiring Releasable Plug Interface

Rated current: 8A
Rated voltage: 300 V
Pitch:3.81mm

Add to quote

Product certification

Pitch Options: 3.81mm

High-density terminal block with larger pin count for modular control boards.

Replacement Compatibility

  • Compatible with: Phoenix Contact IMC1.5/-ST-3.81
  • Alternative to Dinkle: EC3810W
  • Replacement for Degson: 15EDGKR

Product Advantages

  • ☑ 3.81mm pitch supports voltage spacing requirements
  • ☑ Multiple pin counts available
  • ☑ Ideal for modularized terminal layout

Application Scenarios

  • Distribution boxes
  • Control system expansion units
  • Programmable I/O boards

Connection capacity

Conductor cross section solid 0.5~1.5mm²
Conductor cross section flexible 0.75~1.5mm²
AWG 28~16AWG
Torque 0.2N.m
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 300V
Rated current (B) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M2
Pitch 3.81mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.69
03P 2.47
04P 3.25
05P 4.03
06P 4.81
07P 5.59
08P 6.37
09P 7.15
10P 7.93
11P 8.71
12P 9.49
13P 10.27
14P 11.05
15P 11.83
16P 12.61
FPC1.5-XX-381-17AOSI.pdf
PDF Download

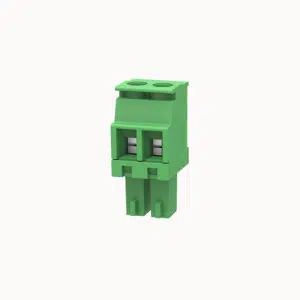

Degson Alternative Terminal Block | Automation System Compatible | FPC1.5-XX-381-00

Rated current: 8A Rated voltage: 300 V Pitch: 3.81mm
Know More

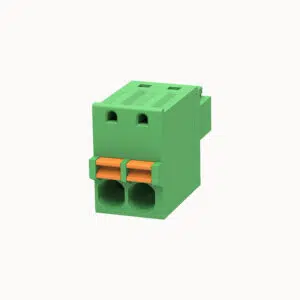

Pcb Terminal Block Supplier China | Spring Clamp Connection | FPC1.5-XX-381-00M

Rated current:8A Rated voltage:300 V Pitch: 3.81mm
Know More

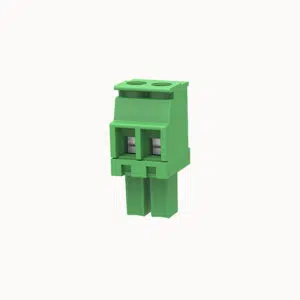

Plug-in Terminal Block 3.81mm | 3.81mm Pitch for Dense Circuits | FPC1.5-XX-381-03
