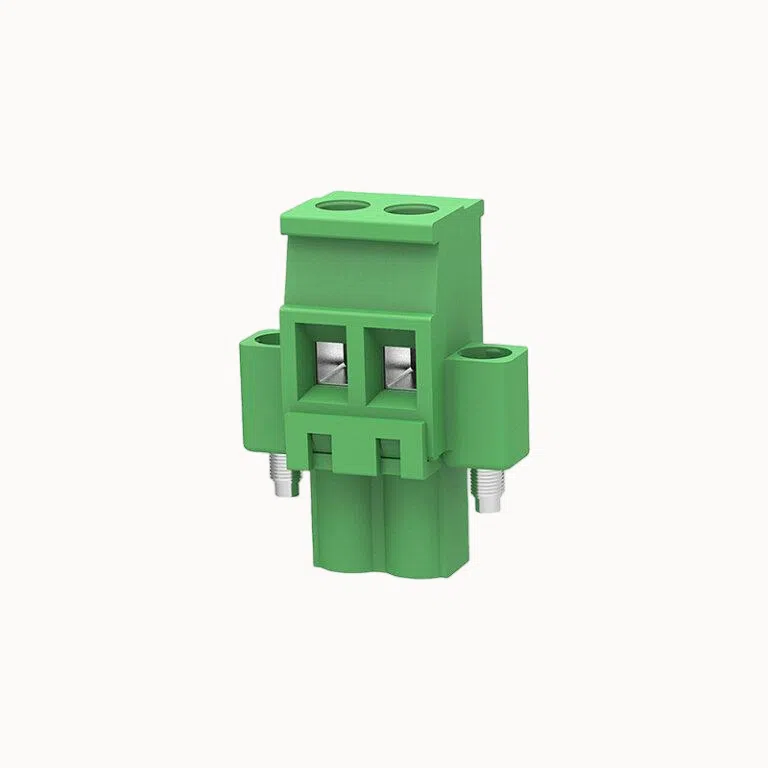

Degson Compatible Terminal Block | Degson Compatible Design | FPC2.5-XX-500-05M

Degson Compatible Terminal Block Degson Compatible Design

Rated current:10A
Rated voltage （III/2）:320V
pitch:5.0mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Pitch Options: 5.0mm / 5.08mm

Robust pluggable for wire-to-board connections in control equipment. Available in two pitch options for versatile PCB layouts.

Replacement Compatibility

  • Replacement for: Degson 2EDGKBM series
  • Alternative to: pluggable terminal socket blocks with latch locks

Product Advantages

  • ☑ Plug-in female terminal block for quick disconnection
  • ☑ Locking flanges for secure mating with female header
  • ☑ Suitable for industrial signal and power applications

Application Scenarios

  • PLC I/O modules
  • Power supply outputs
  • Industrial sensors

Connection capacity

Conductor cross section solid 1.0~2.5mm²
Conductor cross section flexible 1.0~2.5mm²
AWG 28~12AWG
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 18A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 90°
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M3
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 4.213
03P 6.025
04P 7.778
05P 9.7213
06P 11.984
07P 13.651
08P 15.582
09P 19.547
10P 19.584
11P 22.785
12P 23.389
13P 24.113
14P 30.37
15P 31.684
16P 32.316
17P 32.933
24P 46.778
FPC2.5-XX-500-05MAOSI.pdf
PDF Download
