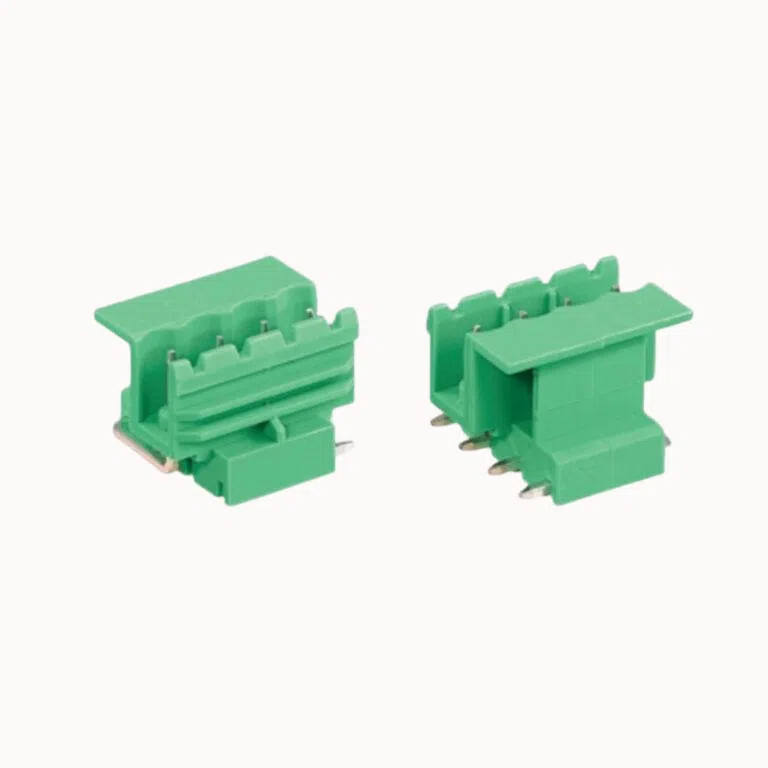

High-density Plug in Terminal Block | Secure Locking System | FPM2.5-XX-500-16R

High-density Plug in Terminal Block Secure Locking System

Rated current: 15A
Rated voltage: 300 V
Pitch:5.08mm

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 20A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)
