IDC14 Socket to Spring Terminal Modules

Product Function: Pin Header connector terminal box
Rated Voltage: DC24V
Input max current(single-channel): 1A
Input terminal interface/usable wire diameter: Pin Header connector
Output terminal interface/usable wire diameter: 24-12AWG/0.5-2.5mm2

Add to quote
Model（Spring） Specs Size（L*W*Hmm）
HNM10M-3D IDC10 55*55*46mm
HNM14M-3D IDC14 60*55*46mm
HNM20M-3D IDC20 75*55*46mm
HNM26M-3D IDC26 90*55*46mm

Features:

Terminal block makes wiring interface structure compact Signal wiring accordance with Standard Pin Header connector with terminal block in diameter 2.5mm lead screw.This product offers an easy,efficient and saving-cost wiring way.The signal transmit from production area to control area and final to monitor through a high pin plug accurately;

Operating function as follows:

1.Easy and efficient wiring way
2.Can be installed on TH35 and G-type rall
3.Frame way to put wiring in place

Specifications:

Rated current 1A
Rated voltage DV24V
Wire range 1.5mm2 following / AWG16

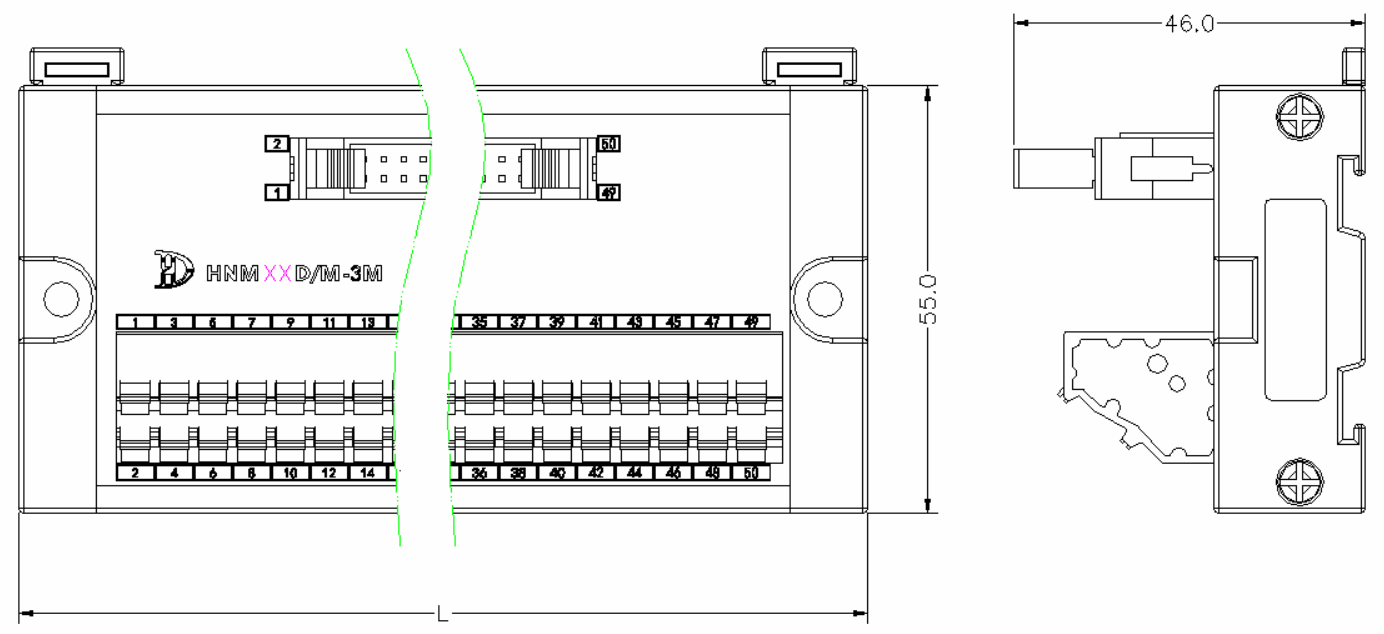

Dimension:

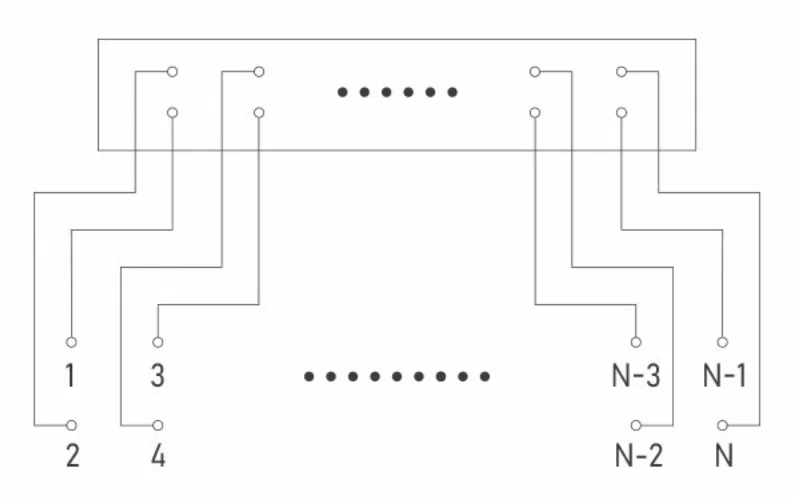

Wiring Diagram:

Wire stripping Recommendation:


MIL Jack Connector

Body Material PBTV-0
Terminal Material Copper Alloy
Plating Pin corners are fully gold plated
Reference Standard UL
Rated Current 2A
Contact resistance <20mΩ



European Terminal Blocks

Body Material PA66V-0
Terminal Material Phosphor copper
Plating Tin plated
Certification UL, CE, VDE
Rated Current 10A
Torque 0.4NM(3.5lb-in)



Terminal Body

Body Material PA66V-0
Cover material PC V-0
Fasteners PC V-0
Authenticate CE
Fixing screw material SUS304
PCB board material FR-4
