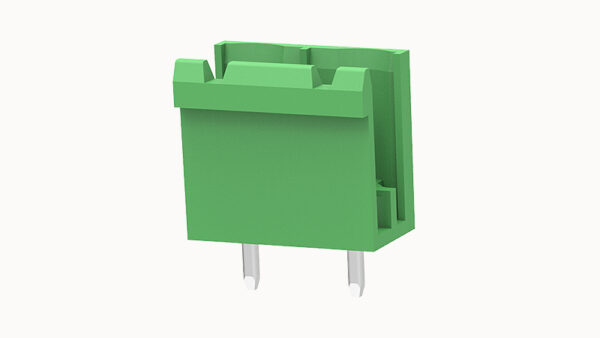

Male Modular Plug in Terminal Block | Compact Design | FPM2.5-XX-750-00

Male Modular Plug in Terminal Block Compact Design

Rated current: 16A
Rated voltage: 300
Pitch:7.5mm

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 10A
Rated current (D) 10A





Electrical parameters UL

Rated voltage 400V
Rated voltage(III/3) 250V
Rated current 8A
Rated voltage(III/2) 400V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





Electrical parameters lEC

Type of installation PCB welding
Pin arrangement Double-row in a straight line
screw thread M2
Pitch 5.08mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





ltem properties

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials High temperature resistant materials
Glow Wire Flammability Index GWFI 850
Shell color Black
Insulating material group Ⅲa
Flammability rating UL94V-0





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~120℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage 250V 400V 630V
Rated current 8A 8A 8A
Cross section / / /




UL parameters

Use group B C D
Rated voltage 300V / 300V
Rated current 10A / 10A
AWG / / /
