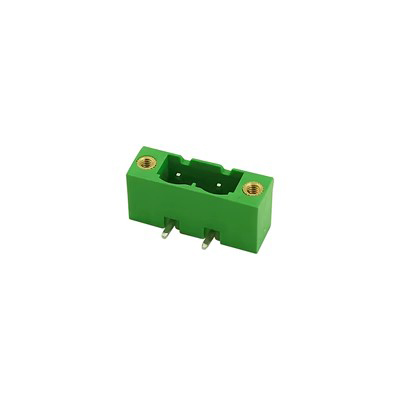

Male Pcb Connector | High Current Rating | FPM2.5-XX-750-04R

Male Pcb Connector High Current Rating

Rated current: 16A
Rated voltage: 300
Pitch:7.5mm

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 10A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage(III/2) 300V
Rated surge voltage(III/2) 4KV





ltem properties

Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 7.62mm
Number of potentials 2-12P
Pluggable or not Yes





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Relative humidity (storage/transport) 30% ~ 70%
Ambient temperature (assembly) -5℃~100℃
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
Ambient temperature (storage / transport) -40℃~70℃



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage 400V 400V 400V
Rated current 20A 20A 20A
Cross section / / /




UL parameters

Use group B C D
Rated voltage 300V / 300V
Rated current 10A / 10A
AWG / / /
