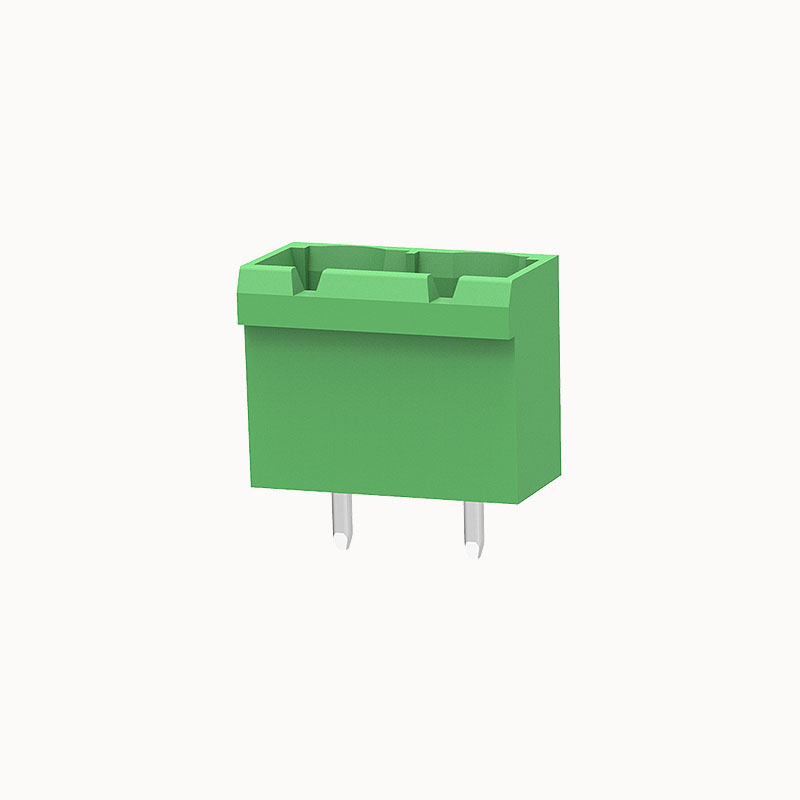

Male Plug in Terminal Block | Wide Pitch Compatibility | FPM2.5-XX-750-02

Home > Terminal Blocks > Pluggable Terminal Block > FPM2.5-XX-750-02

Model

Position

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Electrical parameters UL

Rated voltage (B)	300V
Rated voltage (D)	300V
Rated current (B)	15A
Rated current (D)	10A

Electrical parameters lEC

Rated voltage	320V
Rated current	20A
Rated voltage(III/2)	320V
Rated surge voltage(III/2)	4KV

ltem properties

Connection direction	90°
Type of installation	PCB welding
Pin arrangement	Single row in a straight line
Pitch	5mm
Number of potentials	2-12P
Pluggable or not	Yes
Number of rows	1

Material data

Environmental items	Compliant with REACH/RoHS
Contact material	copper
Contact zone metal surface	tin-plated
Insulation Materials	PA66
Insulating material group	Ⅰ
Flammability rating	UL94V-0

Mechanical tests

Test Specification

IEC61984/ UL1059

Environmental data

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit	500
MOQ	30
Weight (without packaging)

VDE parameters

Screwdriver	/
Operating tool	/

UL parameters

Coding strip	/
Bridge	/
Marking strip	/
Others	2EDG-PWP-01H

FPM2.5-XX-750-02AOSI.pdf
