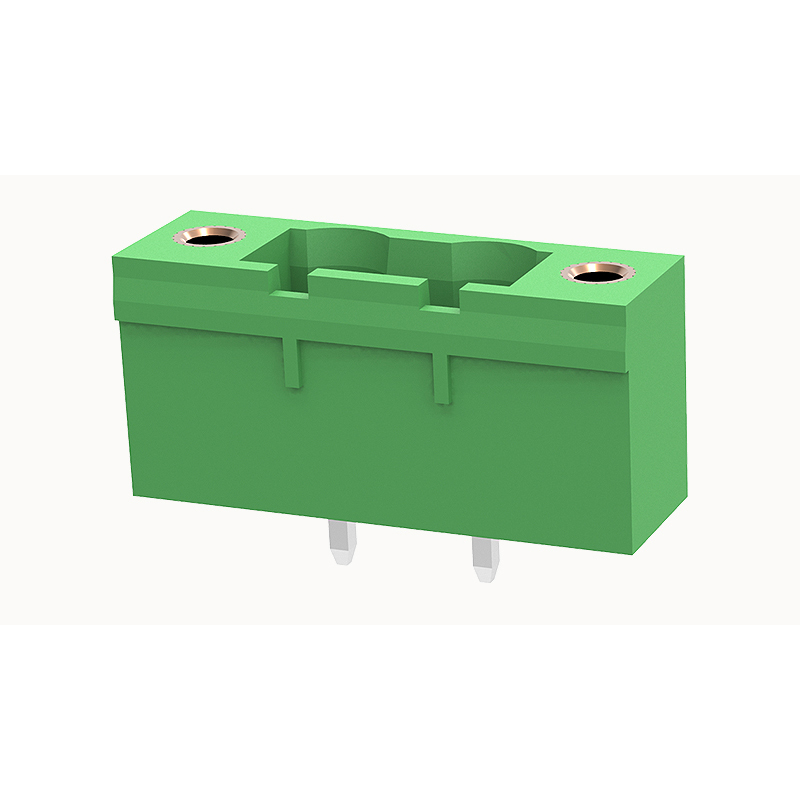

Male Plug in Terminal Block | Reliable Solder Pins | FPM2.5-XX-750-04

Male Plug in Terminal Block Reliable Solder Pins

Rated current: 16A
Rated voltage: 300
Pitch:7.5mm

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.


Electrical parameters UL

Rated voltage (Use Group B) 300V
Rated current (Use Group B) 15A
Rated voltage (Use Group D) 300V
Rated current (Use Group D) 10A





Electrical parameters lEC

Rated current 20A
Rated voltage(III/2) 400V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 7.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Relative humidity (storage/transport) 30% ~ 70%
Ambient temperature (assembly) -5℃~100℃
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
Ambient temperature (storage / transport) -40℃~70℃



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage / 400V /
Rated current / 20A /
Cross section / / /




UL parameters

Use group B C D
Rated voltage 300V / 300V
Rated current 15A / 10A
AWG / / /



FPM2.5-XX-750-04AOSI.pdf
PDF Download
