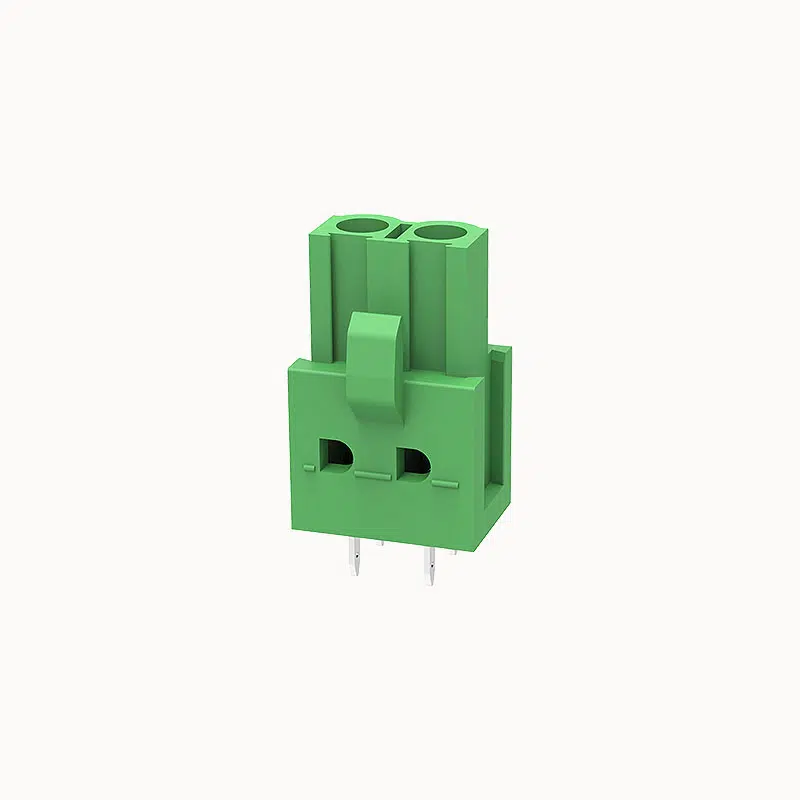

Modular Plug in Terminal Block Secure Locking System

Rated current: 15 A
Rated voltage: 300 V
Pitch: 5.08 mm
Mounting: Wave soldering

Model

Position

清除

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Rated voltage (B)	300V
Rated voltage (D)	300V
Rated current (B)	15A
Rated current (D)	15A

Electrical parameters UL

Rated voltage	320V
Rated voltage(III/3)	320V
Rated current	20A
Rated voltage(III/2)	320V
Rated voltage(II/2)	630V
Rated surge voltage(III/3)	4KV
Rated surge voltage(III/2)	4KV
Rated surge voltage(II/2)	4KV

Electrical parameters lEC

Connection direction	90°
Type of installation	PCB welding
Pin arrangement	Double-row in a straight line
Pitch	5mm
Number of potentials	2-12P
Pluggable or not	Yes
Number of rows	1

ltem properties

Environmental items	Compliant with REACH/RoHS
Contact material	Copper alloy
Contact zone metal surface	tin-plated
Insulation Materials	PA66
Insulating material group	Ⅰ
Flammability rating	UL94V-0

Material data

Test Specification

IEC61984/ UL1059

Mechanical tests

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit	500
MOQ	30
Weight (without packaging)

FPM2.5-XX-508-07AOSI.pdf
