Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPM1.5-XX-381-00

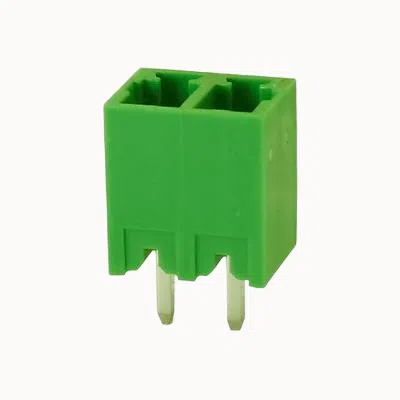

PCB Pluggable Terminal Block Pair | Releasable Plug Interface | FPM1.5-XX-381-00

PCB Pluggable Terminal Block Pair Releasable Plug Interface

Rated current: 8A
Rated voltage: 300 V
Pitch: 3.5mm

Add to quote

Product certification

Pitch Options: 3.5mm / 3.81mm

Standard-pitch male sockets for medium-density layouts and strong mechanical performance.

Replacement Compatibility

  • Replacement for: Degson 15EDGVC series
  • Alternative to: Mid-pitch plug-in male terminal blocks

Product Advantages

  • ☑ Rigid housing for stable mating
  • ☑ Push-lock flanges for vibration resistance
  • ☑ Universal compatibility with matching female blocks

Application Scenarios

  • Relay interfaces
  • Signal modules
  • Industrial lighting systems


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 0.44
03P 0.62
04P 0.8
05P 0.98
FPM1.5-XX-381-00RAOSI.pdf
PDF Download
