PCB Spring Terminal Block

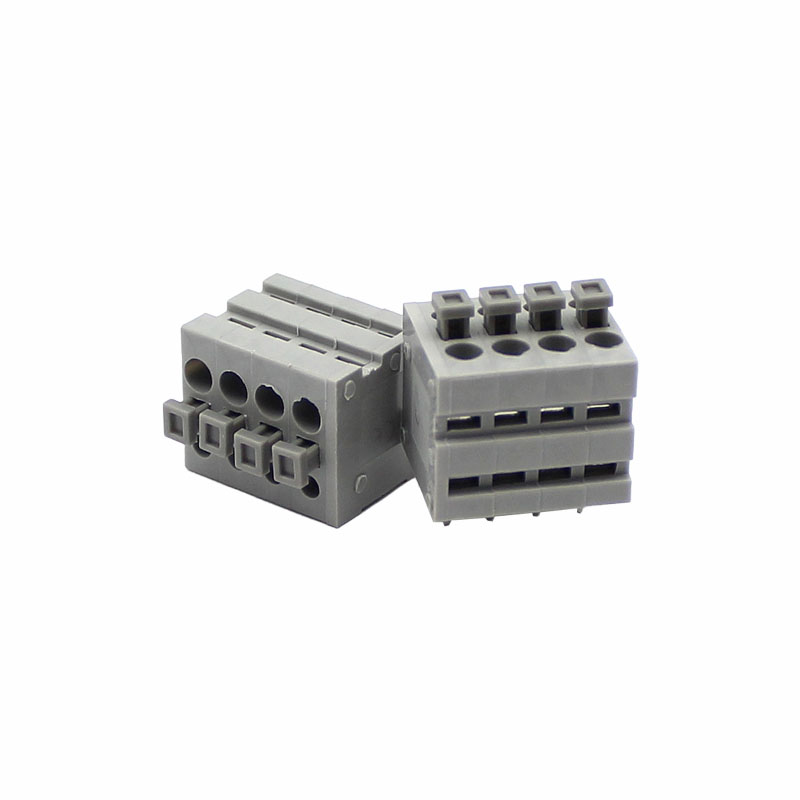

PCB Spring Terminal Block 3.5mm Pitch Secure Screw Contact

Rated current: 5 A
Rated voltage: 300 V
Wire range: 22-18 AWG
Pitch: 3.5mm

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 26~16AWG
Strip length 8mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 15A
Rated voltage(III/2) 250V
Rated surge voltage(III/2) 2KV







ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Connection method Push-in spring connection
Pitch 5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1







Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage / 250V /
Rated current / 15A /
Cross section / 0.2~1.5 /





UL parameters

Use group B C D
Rated voltage 300V / 300V
Rated current 8A / 8A
AWG 26~16 / 26~16
