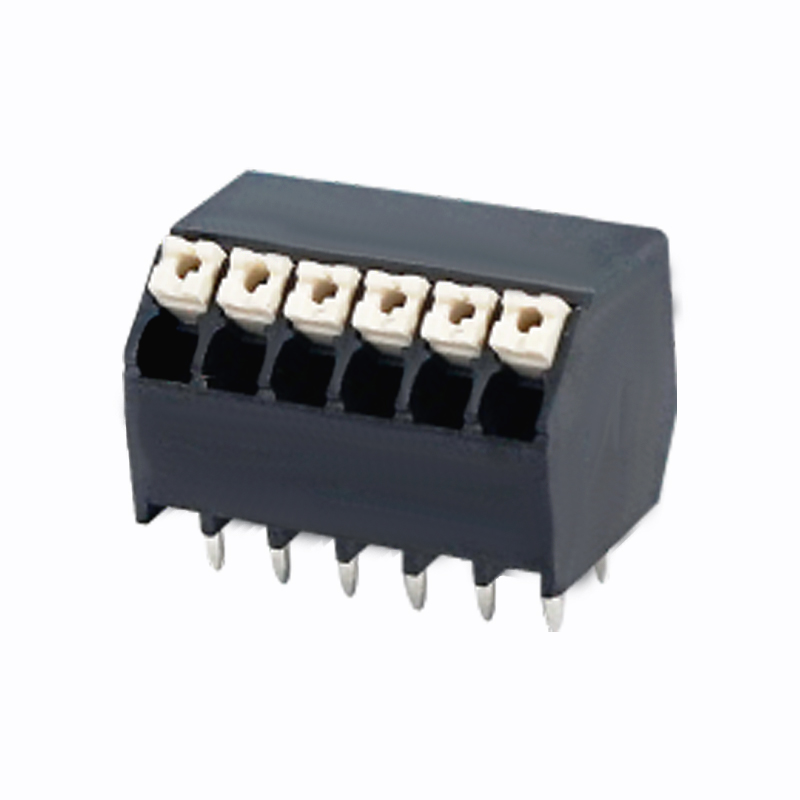

PCB Terminal Block Alternative to Degson

PCB Terminal Block Alternative to Degson Small Footprint Easy Wiring

Rated current:10A
Rated voltage:300 V
Pitch: 3.5mm

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 28~14AWG
Strip length 9mm







Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 12A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 17.5A
Rated voltage(III/2) 160V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 45°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Quick connection
Pitch 3.5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials High temperature resistant materials
Shell color Black
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC60947/UL1059





Environmental data

Ambient temperature (operation) -40℃~130℃(depending on derating curve)





Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage Category/Pollution Degree III/3 III/2 II/2
Rated voltage 160V 160V 320V
Rated current 17.5A 17.5A 17.5A
Wiring capacity 0.2~1.5 0.2~1.5 0.2~1.5





UL parameters

Application category B C D
Rated voltage 300V 300V
Rated current 12A 10A
AWG 28~14 28~14



FS1.5-XX-350-14AOSI.pdf
PDF Download
