Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPM2.5-XX-508-00
Pcb Terminal Block | Reliable Connection | FPM2.5-XX-508-00

Pcb Terminal Block Reliable Connection

Rated current: 8A
Rated voltage: 300 V
Pitch:5.08mm

Add to quote

Product certification

Pitch Option: 5.00mm / 5.08mm

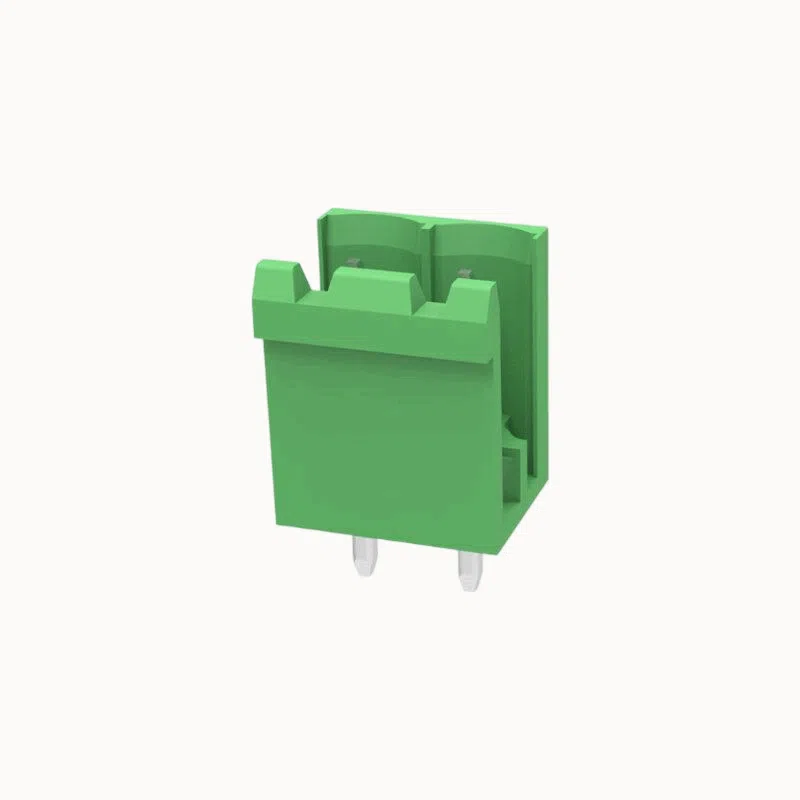

Vertical pluggable screw terminal block.

Replacement Compatibility

  • Compatible with: Degson 2EDGV
  • Alternative to: Standard vertical screw-type plug-in connectors

Product Advantages

  • ☑ Industry-standard 5.00/5.08mm pitch for universal compatibility
  • ☑ Pluggable design facilitates easy assembly and field maintenance
  • ☑ Reliable screw connection accepts a wide range of wire gauges

Application Scenarios

  • Industrial controls
  • Power distribution panels
  • Automation equipment

Connection capacity

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 10A
Rated current (D) 10A





Electrical parameters UL

Rated voltage 400V
Rated voltage(III/3) 250V
Rated current 8A
Rated voltage(III/2) 400V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





Electrical parameters lEC

Type of installation PCB welding
Pin arrangement Double-row in a straight line
screw thread M2
Pitch 5.08mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





ltem properties

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials High temperature resistant materials
Glow Wire Flammability Index GWFI 850
Shell color Black
Insulating material group Ⅲa
Flammability rating UL94V-0





Material data

Test Specification IEC61984/ UL1059





Mechanical tests

Ambient temperature (operation) -40℃~120℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 0.76
03P 1.12
04P 1.48
05P 1.84
06P 2.2
07P 2.56
08P 2.92
09P 3.28
10P 3.64
11P 4
12P 4.36
13P 4.72
14P 5.08
15P 5.44
16P 5.8
17P 6.16
18P 6.52
19P 6.88
20P 7.24
21P 7.6
22P 7.96
24P 8.68
FPM2.5-XX-508-00AOSI.pdf
PDF Download
