PCB Terminal Block

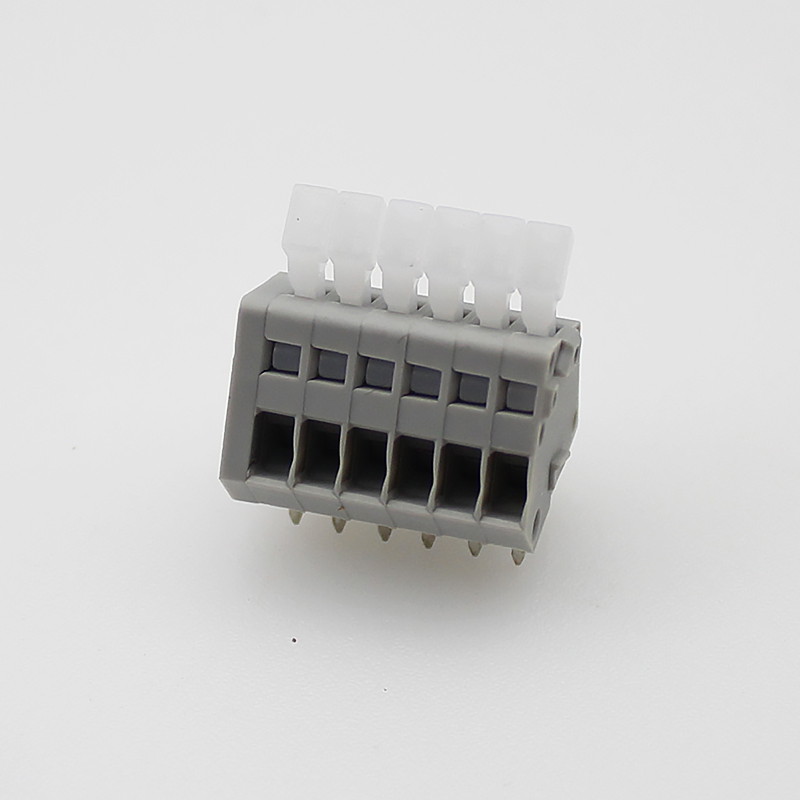

PCB Terminal Block High-Density Wiring Layout 2.54mm Pitch

Rated current: 4A
Rated voltage: 150 V
Wire range: 28-20AWG
Pitch: 2.5mm/2.54mm
Mounting: Wave soldering

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~0.5mm²
Conductor cross section flexible 0.2~0.5mm²
AWG 28~20AWG
Strip length 6mm





Electrical parameters UL

Rated voltage (B) 150V
Rated voltage (C) 150V
Rated voltage (D) 150V
Rated current (B) 4A
Rated current (D) 4A
Rated current (C) 4A





Electrical parameters lEC

Rated voltage 130V
Rated current 6A
Rated voltage(III/2) 130V
Rated power frequency voltage(1min) 1.25KV





ltem properties

Connection direction 45°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method spring-cage connection
Pitch 2.54mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1







Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage / 130V /
Rated current / 6A /
Cross section / 0.2~0.5 /





UL parameters

Use group B C D
Rated voltage 150V 150V 150V
Rated current 4A 4A 4A
AWG 28~20 28~20 28~20





FS1-XX-254-05AOSI.pdf
PDF Download
