Phoenix Contact Compatible Terminal Block | Spring Clamp Connection | FPS1.5-XX-381-00M

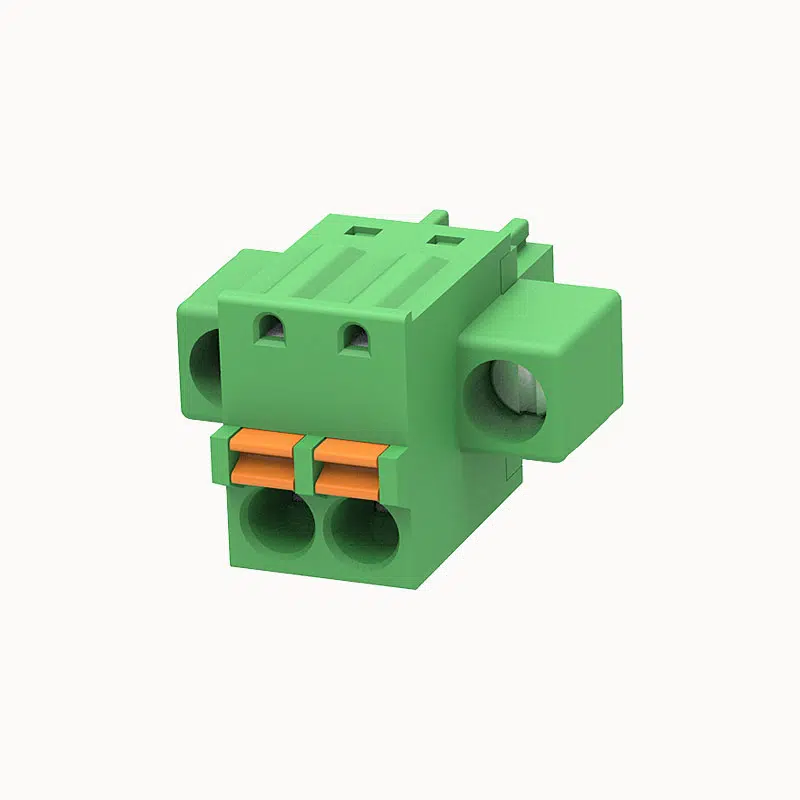

Phoenix Contact Compatible Terminal Block Spring Clamp Connection

Rated current: 8A
Rated voltage: 300 V
Pitch:3.81mm

Add to quote

Product certification

Replacement Compatibility

  • Compatible with Phoenix Contact: FK-MCP 1.5-STF-3.5/3.81
  • Alternative to: ESC30VM series
  • Replacement for: 15EDGKM / KF2EDGKM

Product Advantages

  • ☑ Grounding interface included for enhanced safety
  • ☑ Easy wiring via spring clamp terminals
  • ☑ Slim body ideal for compact enclosures

Application Scenarios

  • Rail transit systems
  • Power control modules
  • Industrial sensors

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 28~16AWG
Torque 0.4N.m
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (C) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A
Rated current (C) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 12A
Rated voltage(III/2) 250V
Rated surge voltage(III/2) 2.5KV





ltem properties

Connection direction 0°
Connection method Push-in spring connection
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 2.5774
03P 3.4551
04P 4.3328
05P 5.2105
06P 6.0882
07P 6.9559
08P 7.8336
09P 8.7113
10P 9.589
11P 10.4567
12P 11.3344
13P 12.2121
14P 13.0898
15P 13.9575
16P 14.8352
18P 16.5856
20P 18.336
FPS1.5-XX-381-00MAOSI.pdf
PDF Download
