Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPC1.5-XX-350-03

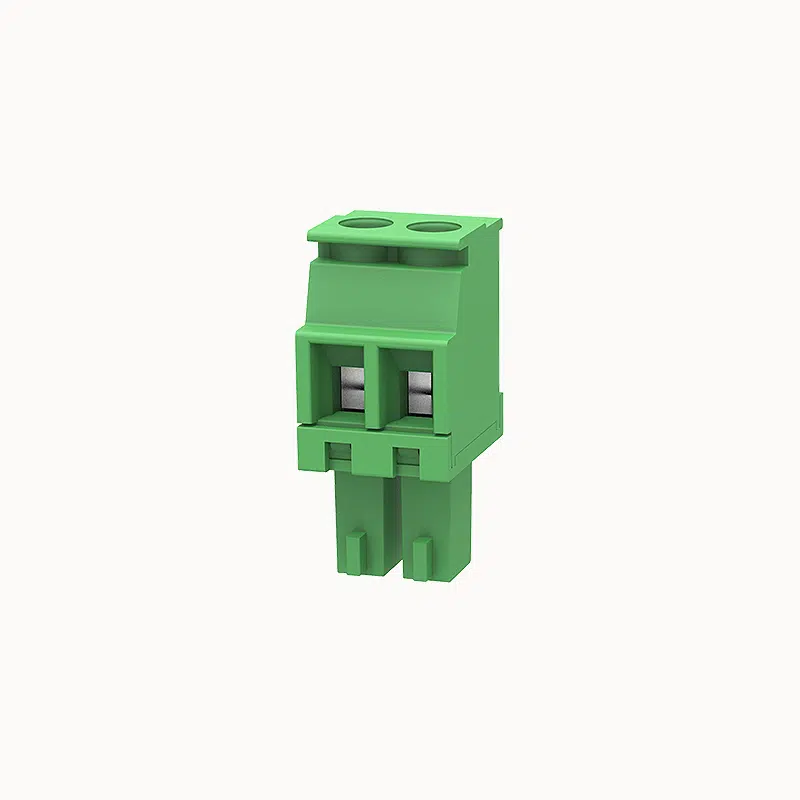

Plug in Terminal Block | Connector Manufacturer | FPC1.5-XX-350-03

Plug in Terminal Block Connector Manufacturer

Rated current: 8A
Rated voltage: 300 V
Pitch: 3.5mm

Add to quote

Product certification

Pitch Options: 3.5mm / 3.81mm

Replacement Compatibility

  • Compatible with: Phoenix Contact MCVR1.5/-ST-3.5/3.81
  • Alternative to Dinkle: EC350R
  • Replacement for Degson: 15EDGKA

Product Advantages

  • ☑ Right-angle pin layout for compact mounting
  • ☑ Strong housing withstands thermal stress
  • ☑ Ideal for edge-mounted circuit boards

Application Scenarios

  • Power distribution modules
  • HVAC control boards
  • IoT gateway devices

Connection capacity

Conductor cross section solid 0.5~1.5mm²
Conductor cross section flexible 0.5~1.5mm²
AWG 28~16AWG
Torque 0.2N.m
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 90°
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M2
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface Nickel plating
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.63
03P 2.41
04P 3.19
05P 3.95
06P 4.71
07P 5.48
08P 6.26
09P 6.98
10P 7.78
11P 8.54
12P 9.33
13P 10.11
14P 10.86
16P 12.42
20P 15.56
FPC1.5-XX-350-03AOSI.pdf
PDF Download
