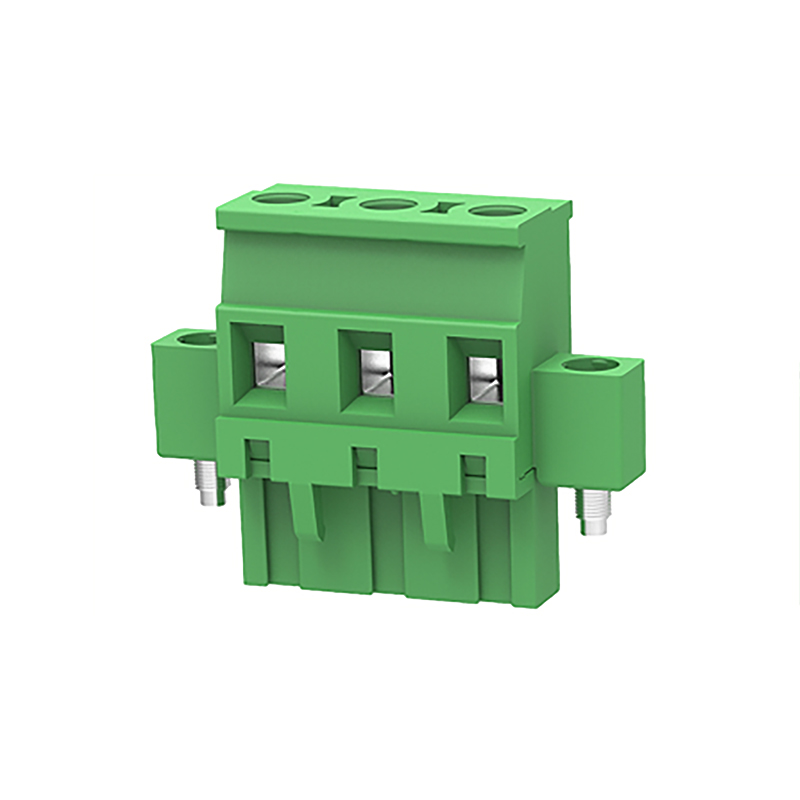

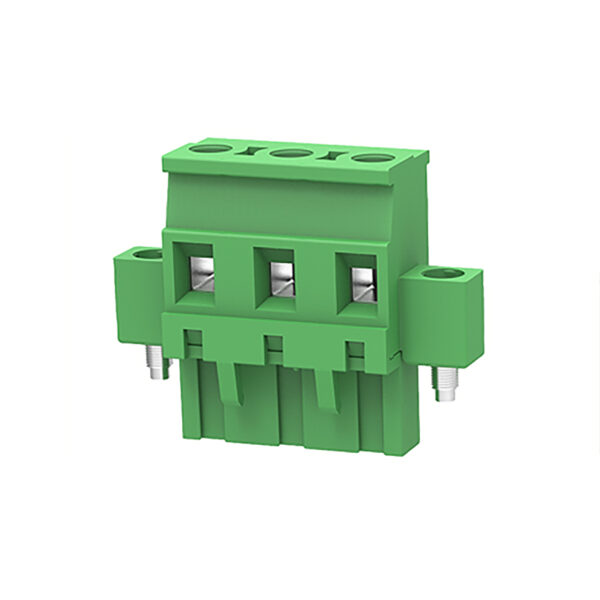

Plug in Terminal Block | High Current Capacity | FPC2.5-XX-762-03M

Plug in Terminal Block High Current Capacity

Rated current:15A
Rated voltage（III/2）:300V
pitch:7.62mm
Color:green
Contact surface :Tin

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 1.0~2.5mm²
Conductor cross section flexible 1.0~2.5mm²
AWG 28~12AWG
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 18A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 90°
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M3
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

FPC2.5-XX-762-03MAOSI.pdf
PDF Download
