Pluggable Terminal Block Compatible with Degson | Spring Clamp Connection | FPC2.5-XX-508-05

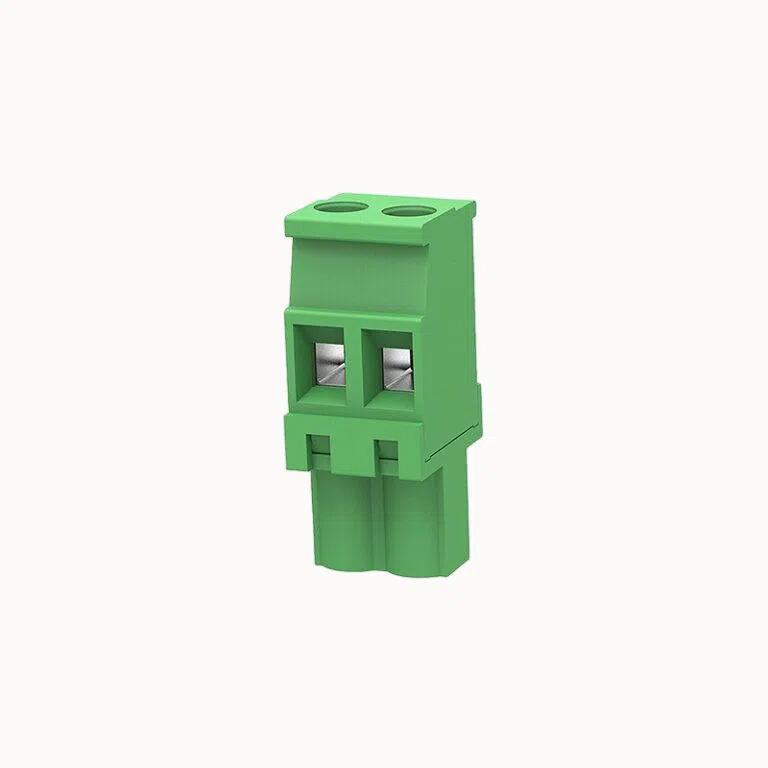

Pluggable Terminal Block Compatible with Degson Spring Clamp Connection

Rated current:10A
Rated voltage （III/2）:320V
pitch:5.08mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Pitch Options: 5.00mm / 5.08mm

5-pin terminal with compact layout and robust screw connections.

Replacement Compatibility

  • Compatible with: Phoenix Contact MVSTBW2,5-ST
  • Alternative to Dinkle: 5ESDPL
  • Replacement for Degson: 2EDGKB

Product Advantages

  • ☑ 5-pin design for typical control and power distribution
  • ☑ Flame-retardant materials and UL certification
  • ☑ Easy-to-maintain modular wiring

Application Scenarios

  • Inverter systems
  • Motor control units
  • Access control systems

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~2.5mm²
feeler gauge a x b／diameter 2.8mm x2.4mm/2.5mm
AWG 30~12AWG
Torque 0.5N.m
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 600V
Rated voltage (C) 600V
Rated current (B) 15A
Rated current (C) 15A





Electrical parameters lEC

Rated voltage 1000V
Rated voltage(III/3) 1000V
Rated current 18A
Rated voltage(III/2) 1000V
Rated voltage(II/2) 1000V
Rated surge voltage(III/3) 8KV
Rated surge voltage(III/2) 8KV
Rated surge voltage(II/2) 8KV





ltem properties

Connection direction 90°
Pin arrangement Single row in a straight line
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M3
Pitch 7.62mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Test Specification IEC61984/ UL1059



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 4.392
03P 6.428
04P 7.984
05P 10.374
06P 11.928
07P 14.028
08P 15.948
09P 17.885
10P 19.826
11P 21.759
12P 23.696
13P 25.633
14P 27.574
16P 32.353
FPC2.5-XX-508-05AOSI.pdf
PDF Download

High-density Terminal Block | Panel Mountable | FPM2.5-XX-508-00R

Rated current: 15 A Rated voltage: 300 V Pitch:5.08mm
Know More

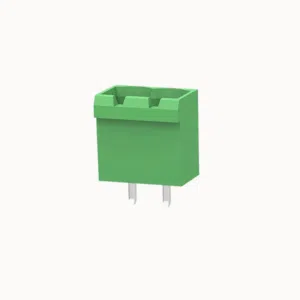

Pcb Terminal Block | Reliable Connection | FPM2.5-XX-508-00

Rated current: 8A Rated voltage: 300 V Pitch:5.08mm
Know More

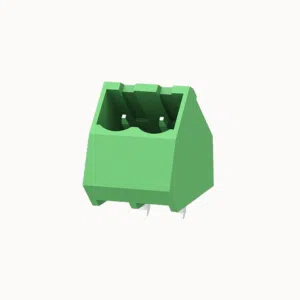

Pcb Terminal Block | High Current Capacity | FPM2.5-XX-500-02

Rated current: 15 A Rated voltage: 300 V Pitch:5.0mm
Know More

Compact Pluggable Terminal Block | Direct From Manufacturer | FPC2.5-XX-508-17

Rated current: 15 A Rated voltage: 300 V Pitch:5.08mm
Know More

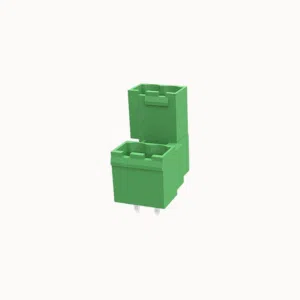

Double Tier Plug in Connector | Direct From Manufacturer | FPH2.5-XX-508-00R

Rated current:10A Rated voltage （III/2）:320V pitch:5.08mm Color:green Contact surface :Tin
Know More

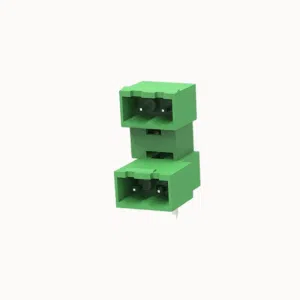

Stacked Pluggable Terminal Block | Dual Row Configuration | FPH2.5-XX-508-00

Rated current: 15A Rated voltage: 300 V Pitch: 5.08 mm
Know More

High-density Plug in Terminal Block | Secure Locking System | FPM2.5-XX-500-16R

Rated current: 15A Rated voltage: 300 V Pitch:5.08mm
Know More

Male Terminal Block | DIN Rail Mountable | FPM2.5-XX-500-16

Rated current: 15A Rated voltage: 300 V Pitch: 5.00 mm
Know More

Spring-loaded Terminal Block | Panel Mountable | FPM2.5-XX-508-02

Rated current: 15 A Rated voltage: 300 V Pitch:5.08mm
Know More

Quick Connect Plug in Terminal Block | Panel Mountable | FPM2.5-XX-508-13

Rated current: 15A Rated voltage: 300 V Pitch: 5.08 mm
Know More

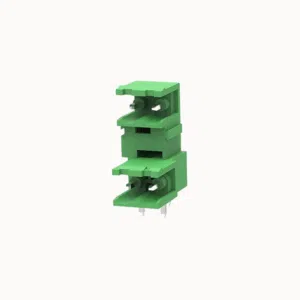

Multi-level Plug in Terminal Block | Secure Locking System | FPH2.5-XX-508-16R

Rated current: 15A Rated voltage: 300 V Pitch: 5.08 mm
Know More

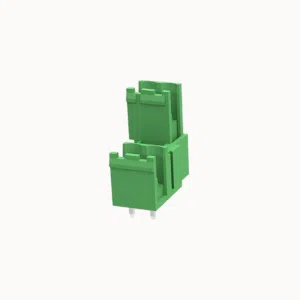

Stacked Pluggable Terminal Block | Factory Price Available | FPH2.5-XX-508-16
