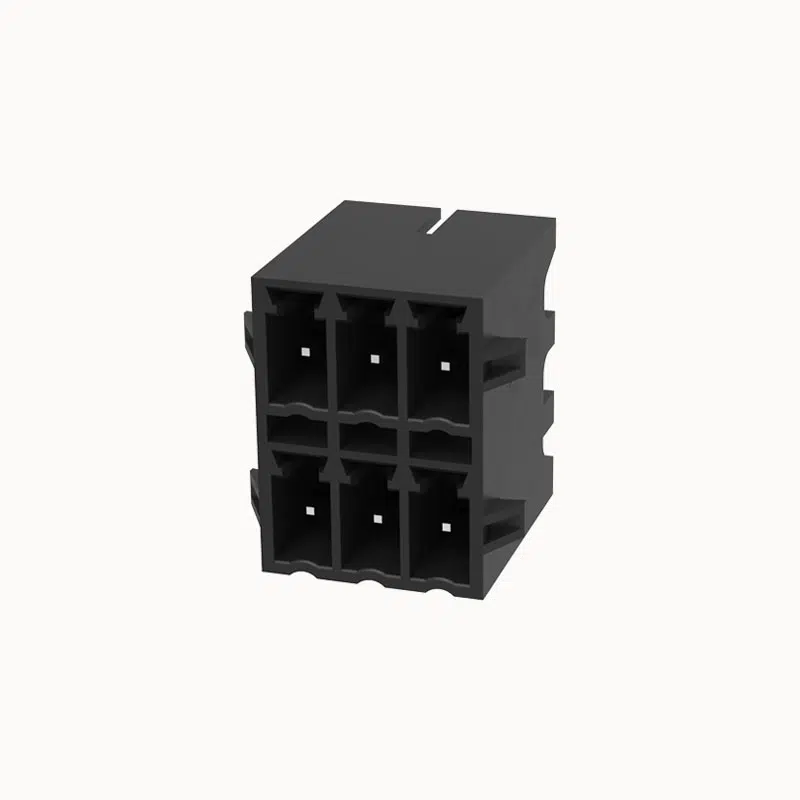

Pluggable Terminal Block | Flange Fixed Type, Black Shell | FPH1.5-XX-350-02F

Pluggable Terminal Block Flange Fixed Type, Black Shell

Rated current: 8 A
Rated voltage: 300 V
Pitch:3.5mm

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 8A
Rated voltage(III/2) 160V
Rated voltage(II/2) 250V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV
V





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials High temperature resistant materials
Insulating material group Ⅲa
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~130℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging) 2.19

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage / / 250
Rated current / / 8
Cross section / / /




UL parameters

Use group B C D
Rated voltage 300 / 300
Rated current 8 / 8
AWG / / /



FPH1.5-XX-350-02FAOSI.pdf
PDF Download
