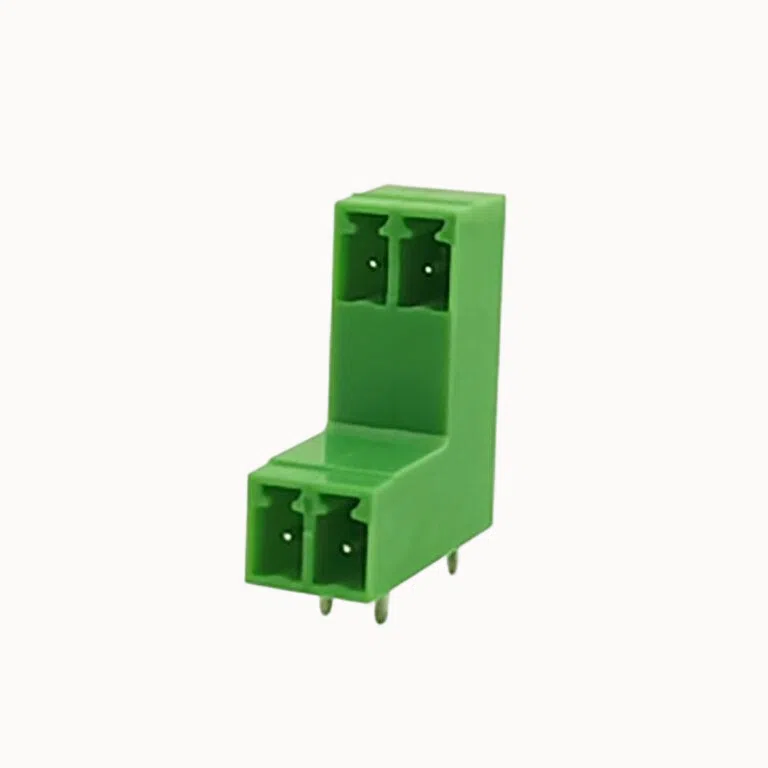

Pluggable Terminal Block | UL Listed Manufacturer, Right Angle Header | FPH1.5-XX-350-17R

Pluggable Terminal Block UL Listed Manufacturer, Right Angle Header

Rated current: 8 A
Rated voltage: 300 V
Pitch:3.5mm

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.


Electrical parameters UL

Rated voltage (B) 300V
Rated current (B) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC60947/UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging) 2.19

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage / / 250
Rated current / / 7
Cross section / / /




UL parameters

Use group B C D
Rated voltage 300 / 300
Rated current 8 / 8
AWG / / /



FPH1.5-XX-350-17RAOSI.pdf
PDF Download
