Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPS1.5-XX-350-00M

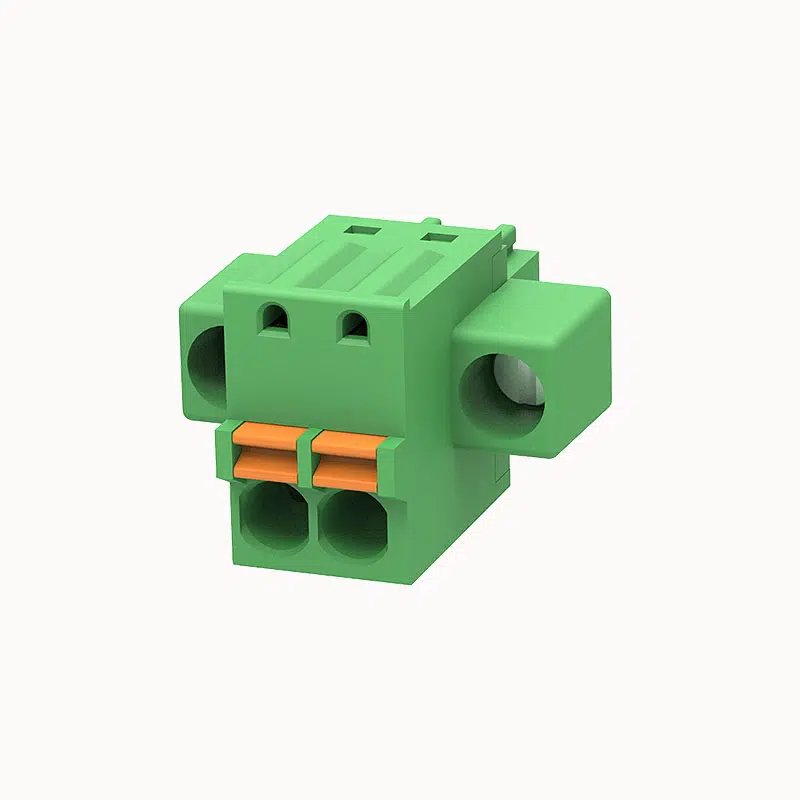

Pluggable Terminal Block with Screw Lock

Rated current:8A
Rated voltage:300 V
Pitch: 3.5mm

Product certification

Replacement Compatibility

  • Compatible with Phoenix Contact: FK-MCP 1.5-STF-3.5/3.81
  • Alternative to: ESC30VM series
  • Replacement for: 15EDGKM / KF2EDGKM

Product Advantages

  • Grounding interface included for enhanced safety
  • Easy wiring via spring clamp terminals
  • Slim body ideal for compact enclosures

Application Scenarios

  • Rail transit systems
  • Power control modules
  • Industrial sensors

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 28~16AWG
Torque 0.4N.m
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (C) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A
Rated current (C) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 12A
Rated voltage(III/2) 250V
Rated surge voltage(III/2) 2.5KV





ltem properties

Connection direction
Connection method Push-in spring connection
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 2.5574
03P 3.4101
04P 4.1838
05P 5.0555
06P 5.8902
07P 6.8609
08P 7.5536
09P 8.3863
10P 9.265
11P 10.0767
12P 10.8884
14P 12.8798
16P 14.1852
17P 15.4679
18P 16.3206
20P 18.046
