Pluggable Terminal Block with Screw Fixing Connector | 3.5mm Pitch | FPS1.5-XX-350-02M

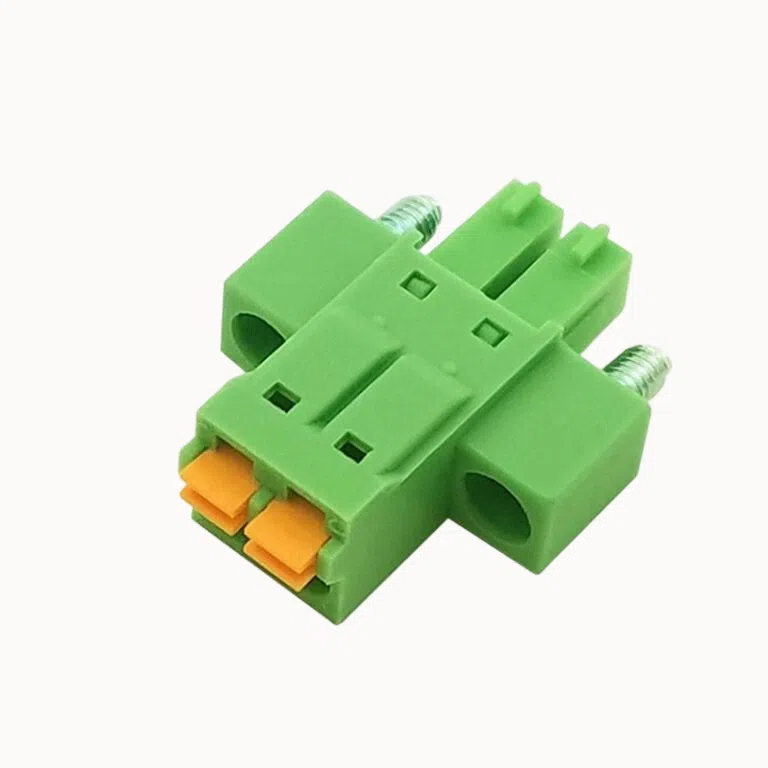

Pluggable Terminal Block with Screw Fixing Connector 3.5mm Pitch

Rated current:8A.Rated voltage ???a???/2???:250V,Cross section:1.0mm?2,pitch:3.5mm,Color:green,Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Compatible with Phoenix Contact: FMC1.5/STF-3.5 / 3.81
  • Alternative to Dinkle: 0221-28XX series
  • Replacement for: 15EDGKNM / KF2EDGKNM

Product Advantages

  • ☑ Designed for PCB mounting with screw lock structure
  • ☑ Enhanced retention with mechanical flange
  • ☑ Spring terminals offer high contact reliability

Application Scenarios

  • Industrial control PLCs
  • Power converters
  • Measurement and testing systems

Connection capacity

Conductor cross section solid 0.2~1.0mm²
Conductor cross section flexible 0.2~1.0mm²
AWG 28~16AWG
Strip length 10mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 8A
Rated voltage(III/2) 160V
Rated voltage(II/2) 250V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Connection method Push-in spring connection
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 6.6
03P 7.6
04P 8.6
05P 9.6
06P 1.5388
07P 2.6926
08P 3.8244
09P 5.7246
10P 1.8103
12P 3.0025
13P 3.5986
16P 7.0892
17P 8.8775
18P 12.4541
FPS1.5-XX-350-02MAOSI.pdf
PDF Download
