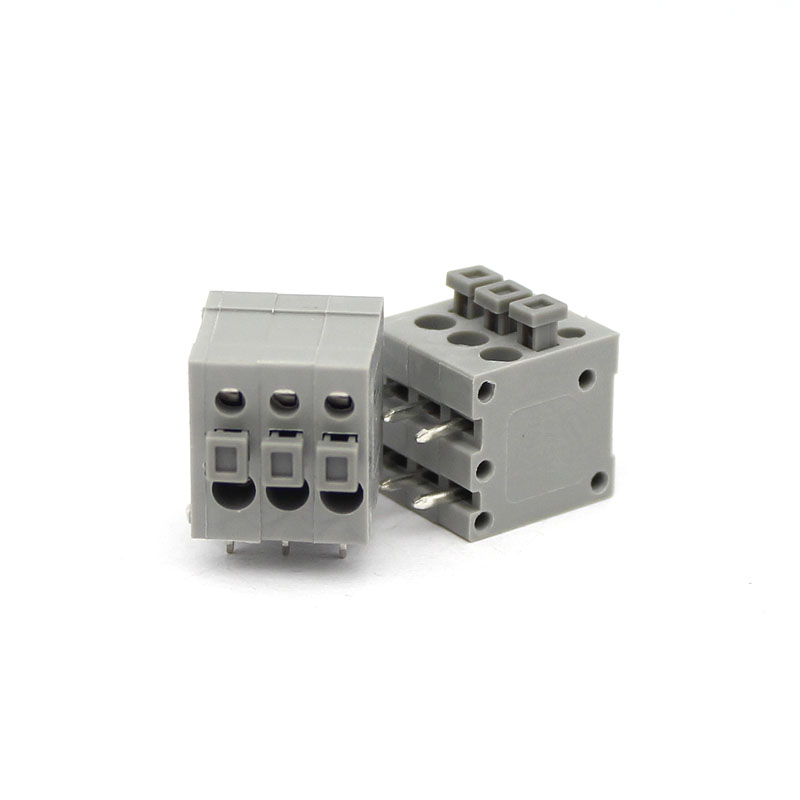

Push-in Terminal Block Replace to WAGO

Push in Terminal Block Replace to WAGO Power Distribution Use

Rated current: 5 A
Rated voltage: 300 V
Wire range: 22-18 AWG
Pitch: 3.5mm

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~0.5mm²
Conductor cross section flexible 0.2~0.5mm²
AWG 28~20AWG
Strip length 9mm







Electrical parameters UL

Rated voltage (B) 150V
Rated current (B) 5A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 3A
Rated voltage(III/2) 160V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV







ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Push-in spring connection
Pitch 2.5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1







Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC60947/UL1059







Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage 160V 160V 320V
Rated current 3A 3A 3A
Cross section 0.2~0.5 0.2~0.5 0.2~0.5





UL parameters

Use group B C D
Rated voltage 150V / /
Rated current 5A / /
AWG 28~20 / /





FS1.5-XX-350-03AOSI.pdf
PDF Download
