Push-in Terminal Block

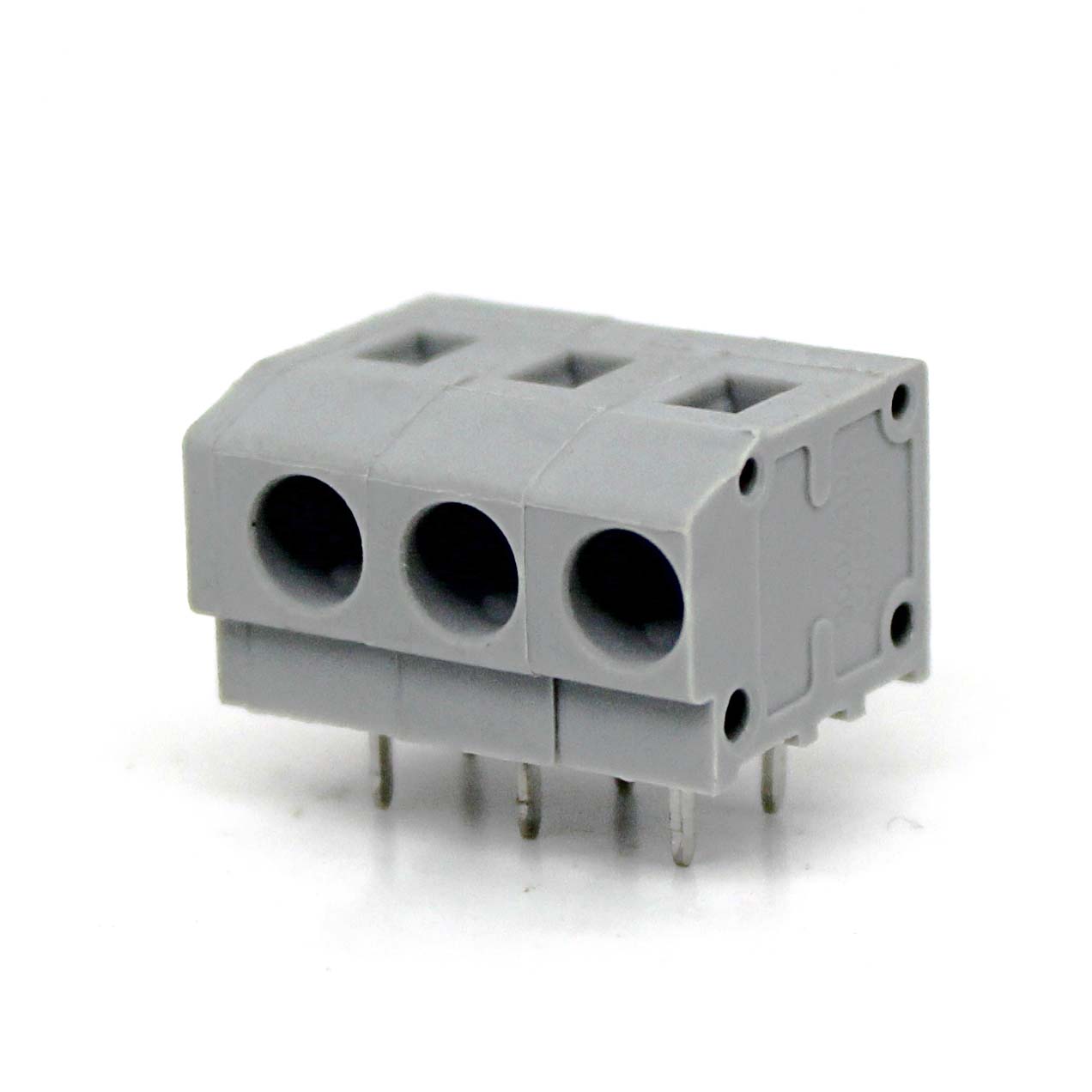

Push in Terminal Block 7 Pin Header For Signal Connections

Rated current: 5A
Rated voltage: 300V
Wire range: 22-18AWG
Pitch: 5.0mm
Mounting: Wave soldering

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 20~18AWG
Strip length 10mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (C) 150V
Rated voltage (D) 300V
Rated current (B) 5A
Rated current (D) 5A
Rated current (C) 5A





Electrical parameters lEC

Rated voltage 320V
Rated voltage(III/3) 250V
Rated current 17.5A
Rated voltage(III/2) 320V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Push-in spring connection
Pitch 10mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC60947/UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage 250V 320V 630V
Rated current 17.5A 17.5A 17.5A
Cross section 0.2~2.5 0.2~2.5 0.2~2.5



UL parameters

Use group B C D
Rated voltage 300V 150V 300V
Rated current 5A 5A 5A
AWG 20~18 20~18 20~18



FS1.5-XX-500-07AOSI.pdf
PDF Download
