Quick Connect Terminal Block | Tool-Free Wire Insertion | FPM2.5-XX-500-04

Quick Connect Terminal Block Tool-Free Wire Insertion

Rated current:20A
Rated voltage （Ⅲ/2）:320V
pitch:5.0mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Pitch Option: 5.00mm / 5.08mm

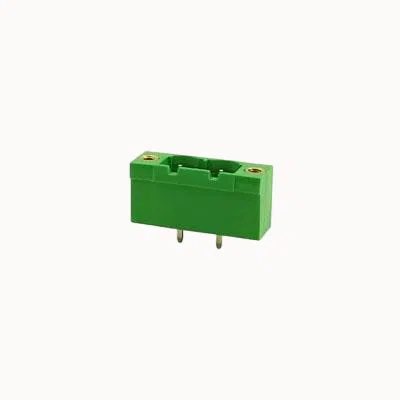

Vertical pluggable screw terminal block with closed sides.

Replacement Compatibility

  • Compatible with: Degson 2EDGVM
  • Alternative to: Shrouded or coded vertical plug-in connectors

Product Advantages

  • ☑ Closed side walls guide mating and prevent pin-out errors
  • ☑ Robust design for reliable performance in industrial settings
  • ☑ Standardized pitch ensures cross-compatibility with matching headers

Application Scenarios

  • Process control systems
  • PLC interfaces
  • Power conditioners

Connection capacity

Rated voltage (Use Group B) 300V
Rated current (Use Group B) 15A
Rated voltage (Use Group D) 300V
Rated current (Use Group D) 10A





Electrical parameters UL

Rated current 20A
Rated voltage(III/2) 400V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 7.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Relative humidity (storage/transport) 30% ~ 70%
Ambient temperature (assembly) -5℃~100℃
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
Ambient temperature (storage / transport) -40℃~70℃



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.35
03P 2.25
04P 2.66
05P 3.02
06P 3.15
07P 3.75
08P 4.48
09P 5.2
10P 5.67
12P 5.85
16P 6.33
