Screw-in Terminal Block | Spring Clamp Connection | FET2.5-XX-500-08

Home > Terminal Blocks > Screw Terminal Block > FET2.5-XX-500-08

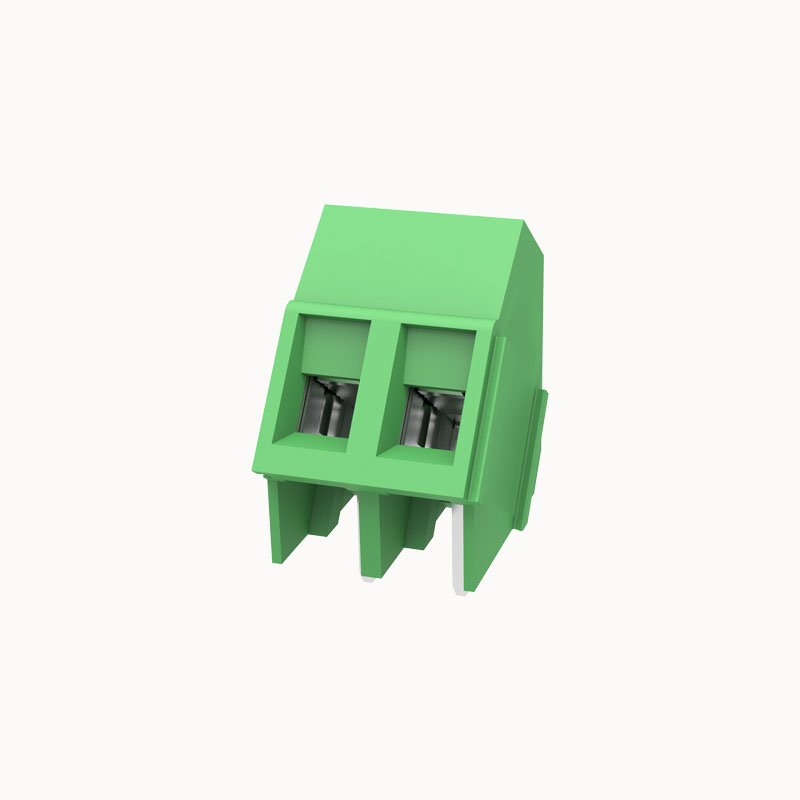

Screw-in Terminal Block Spring Clamp Connection

Rated current: 16 A
Rated voltage: 300 V
Wire range: 24-12 AWG
Pitch: 5.0 mm
Mounting: Wave soldering

Model

Position

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Rated current	3A
	125V

Electrical parameters UL

Number of potentials

2-12P

Electrical parameters lEC

Contact material	Copper alloy
Contact zone metal surface	Gold plate
Insulation Materials	PBT

ltem properties

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit	500
MOQ	30
Weight (without packaging)

FET2.5-XX-500-08AOSI.pdf
