Secure Locking Plug in Terminal Block | Compact Design | FPC2.5-XX-762-05

Home > Terminal Blocks > Pluggable Terminal Block > FPC2.5-XX-762-05

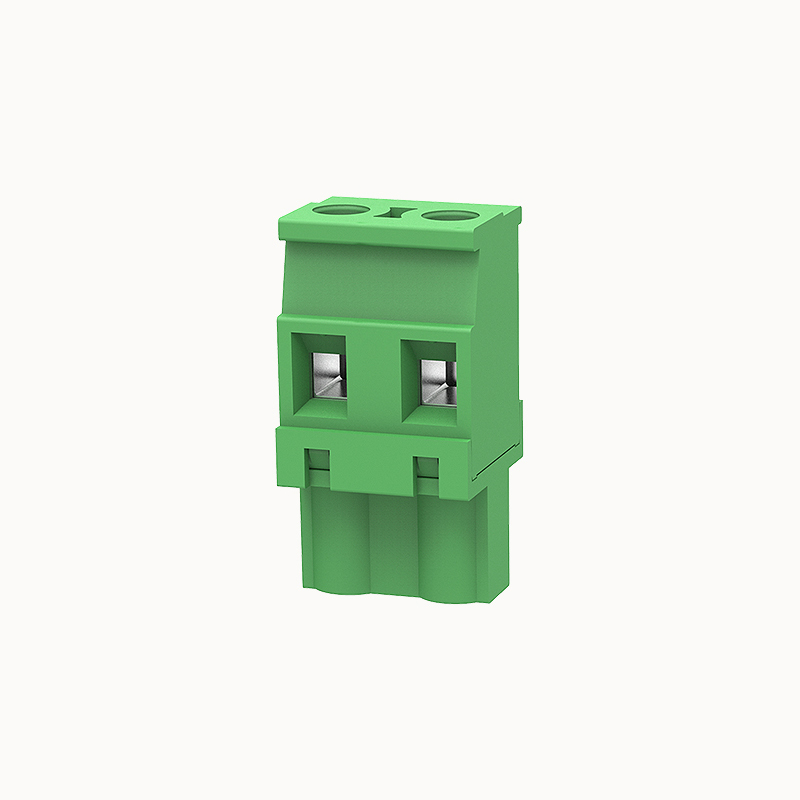

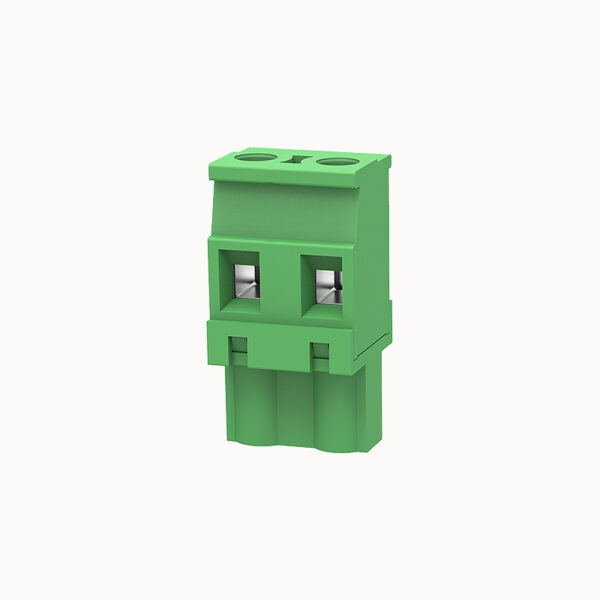

Secure Locking Plug in Terminal Block Compact Design

Rated current:10A
Rated voltage （III/2）:400V
pitch:7.62mm
Color:green
Contact surface :Tin

Model

Position

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid	0.2~2.5mm²
Conductor cross section flexible	0.2~2.5mm²
feeler gauge a x b／diameter	2.8mm x2.4mm/2.5mm
AWG	30~12AWG
Torque	0.5N.m
Strip length	7mm

Electrical parameters UL

Rated voltage (B)	600V
Rated voltage (C)	600V
Rated current (B)	15A
Rated current (C)	15A

Electrical parameters lEC

Rated voltage	1000V
Rated voltage(III/3)	1000V
Rated current	18A
Rated voltage(III/2)	1000V
Rated voltage(II/2)	1000V
Rated surge voltage(III/3)	8KV
Rated surge voltage(III/2)	8KV
Rated surge voltage(II/2)	8KV

ltem properties

Connection direction	90°
Pin arrangement	Single row in a straight line
Connection method	Screw connection
Screwdriver	Slotted screwdriver
screw thread	M3
Pitch	7.62mm
Number of potentials	2-12P
Pluggable or not	Yes
Number of rows	1

Material data

Environmental items	Compliant with REACH/RoHS
Contact material	Copper alloy
Contact point metal surface	tin-plated
Contact zone metal surface	tin-plated
Insulation Materials	PA66
Shell color	green
Insulating material group	Ⅰ
Flammability rating	UL94V-0

Mechanical tests

Test Specification

IEC61984/ UL1059

Environmental data

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit	500
MOQ	30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution	III/3	III/2	II/2
Rated voltage	1000V	1000V	1000V
Rated current	18A	18A	18A
Cross section	0.2~2.5	0.2~2.5	0.2~2.5

UL parameters

Use group	B	C	D
Rated voltage	600V	600V	/
Rated current	15A	15A	/
AWG	30~12	30~12	30~12

FPC2.5-XX-762-05AOSI.pdf
