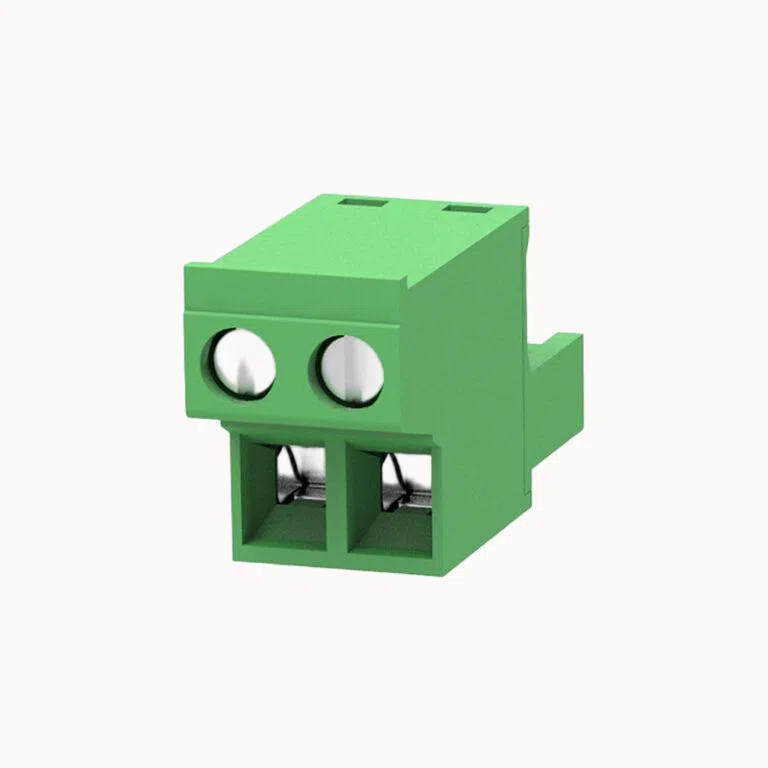

Spring-loaded Pluggable Terminal Block | Spring Clamp Connection | FPC2.5-XX-508-11

Spring-loaded Pluggable Terminal Block Spring Clamp Connection

Rated current: 15A
Rated voltage: 300V
Pitch:5.0mm/ 5.08 mm

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~2.5mm²
feeler gauge a x b／diameter 2.8mm x2.0mm/2.4mm
AWG 28~12AWG
Torque 0.5N.m
Strip length 10mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 800V
Rated voltage(III/3) 400V
Rated current 12A
Rated voltage(III/2) 800V
Rated voltage(II/2) 1000V
Rated surge voltage(III/3) 6KV
Rated surge voltage(III/2) 6KV
Rated surge voltage(II/2) 6KV





ltem properties

Connection direction 0°
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M2.5
Pitch 5.08mm
Number of potentials 2-12P
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059



Packing unit 500
MOQ 30
Weight (without packaging)

FPC2.5-XX-508-11AOSI.pdf
PDF Download
