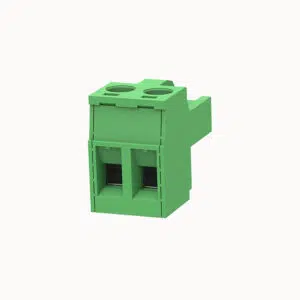

Spring-loaded Terminal Block | Panel Mountable | FPM2.5-XX-508-02

Spring-loaded Terminal Block Panel Mountable

Rated current: 15 A
Rated voltage: 300 V
Pitch:5.08mm

Add to quote

Product certification

Pitch Option: 5.00mm / 5.08mm

Vertical pluggable screw terminal block with closed sides.

Replacement Compatibility

  • Compatible with: Degson 2EDGVC
  • Alternative to: Vertical terminal blocks with coding or enhanced safety features

Product Advantages

  • ☑ Closed side walls prevent mis-mating and protect connections
  • ☑ Robust housing suitable for demanding industrial environments
  • ☑ Top-entry screw terminals for easy wiring access

Application Scenarios

  • Power supplies
  • Frequency inverters
  • Building automation systems

Connection capacity

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters UL

Rated voltage 320V
Rated current 20A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





Electrical parameters lEC

Connection direction 90°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





ltem properties

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Material data

Test Specification IEC61984/ UL1059





Mechanical tests

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 0.97
03P 1.46
04P 1.5
05P 1.88
06P 2.36
07P 2.53
08P 2.94
09P 3.35
10P 3.51
11P 3.96
12P 4.46
13P 5.41
14P 5.43
15P 5.82
16P 6.05
17P 6.42
18P 6.64
19P 7.5
20P 7.7
21P 7.92
23P 8.18
24P 8.42
FPM2.5-XX-508-02AOSI.pdf
PDF Download
