Spring Terminal Block alternative to Anytek

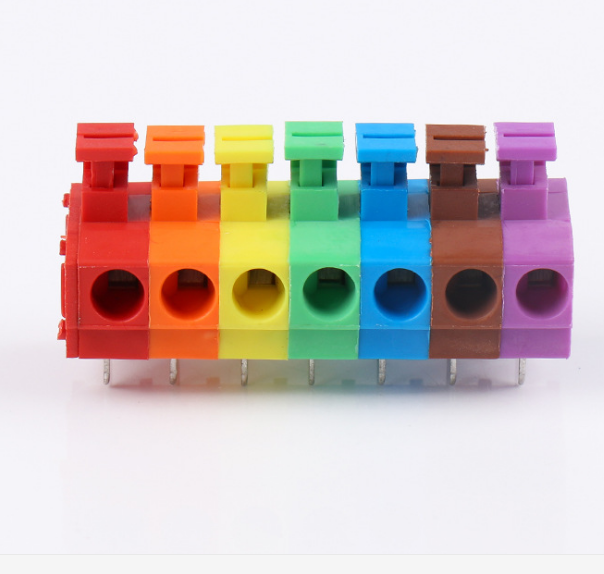

Spring Terminal Block alternative to Anytek Vertical Entry 5.0mm Pitch

Rated current: 5A
Rated voltage: 300V
Wire range: 22-18AWG
Pitch: 5.0mm
Mounting: Wave soldering

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

torque 5.5N.m
Connectable conductor cross section 2~1/0AWG





Electrical parameters UL

number of digits 23.5mm





Electrical parameters lEC

Rated voltage (B) 600V
Rated voltage (C) 600V
Rated voltage (D) 600V
Rated current (B) 120A
Rated current (D) 5A
Rated current (C) 120A





ltem properties

Type of installation PCB welding
Pin arrangement Double-row in a straight line
Screwdriver Phillips screwdriver
screw thread M8
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PBT
Insulating material group Ⅲa
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059





Environmental data

Ambient temperature (operation) -40℃~125℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Use group B C D
Rated voltage 600V 600V 600V
Rated current 120A 120A 5A
AWG 2~1/0 2~1/0 2~1/0



UL parameters

Application category B C D
Rated voltage 600V 600V 600V
Rated current 120A 120A 5A
AWG 2~1/0 2~1/0 2~1/0



FS1.5-XX-500-06AOSI.pdf
PDF Download
