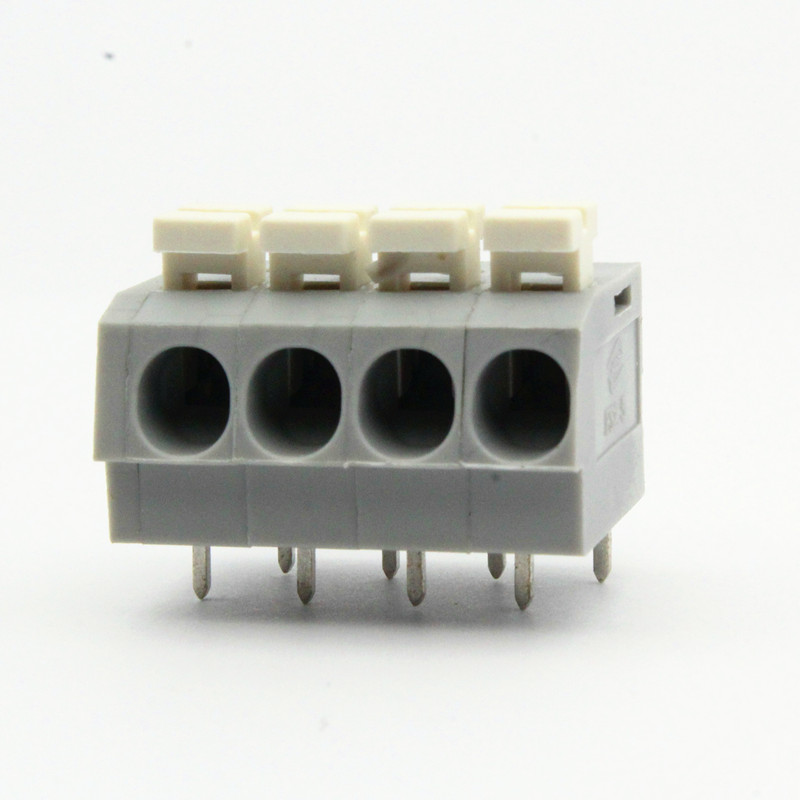

Spring Terminal Block Automation System Wiring

Rated current: 12A
Rated voltage: 300V
Wire range: 20-12AWG
Pitch: 5.0mm
Mounting: Wave soldering

Model

Position

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

AWG	18~3AWG
Torque	7.9N.m

Electrical parameters UL

Rated voltage (B)	600V
Rated voltage (C)	600V
Rated voltage (D)	600V
Rated current (B)	115A
Rated current (D)	5A
Rated current (C)	115A

ltem properties

Type of installation	PCB welding
Connection method	Screw connection
Screwdriver	Phillips screwdriver
screw thread	M6
Pitch	20.2mm
Number of potentials	2-24P
Pluggable or not	no
Number of rows	1

Material data

Environmental items	Compliant with REACH/RoHS
Contact material	copper
Contact point metal surface	tin-plated
Insulation Materials	PBT
Insulating material group	Ⅲa
Flammability rating	UL94V-0

Mechanical tests

Test Specification

UL1059

Environmental data

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Packing unit	500
MOQ	30
Weight (without packaging)

VDE parameters

Rated voltage	600V	600V	600V
Rated current	115A	115A	5A
Wiring capacity	18~2	18~2	18~2

FS2.5-XX-500-06AOSI.pdf
