Stacked Pluggable Terminal Block | Dual Row Configuration | FPH2.5-XX-508-18

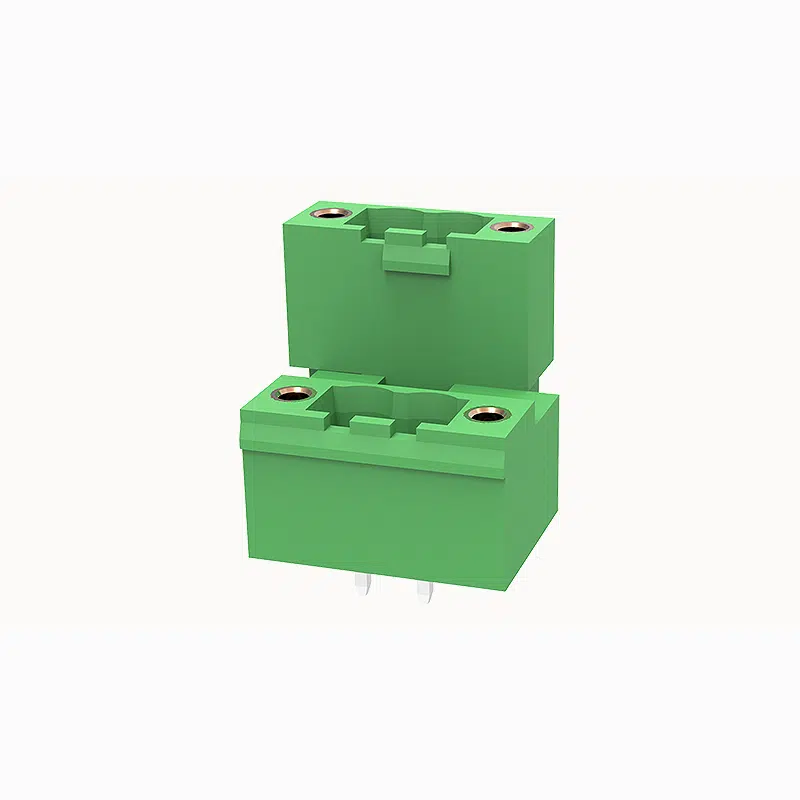

Stacked Pluggable Terminal Block Dual Row Configuration

Rated current:10A
Rated voltage （III/2）:320V
pitch:5.08mm
Color:green
Contact surface :Tin

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 10A





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 5.08mm
Number of potentials 2-12P
Pluggable or not no
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

FPH2.5-XX-508-18AOSI.pdf
PDF Download
