Wago Compatible Pluggable Terminal Block | Screw Connection Type | FPC2.5-XX-500-00M

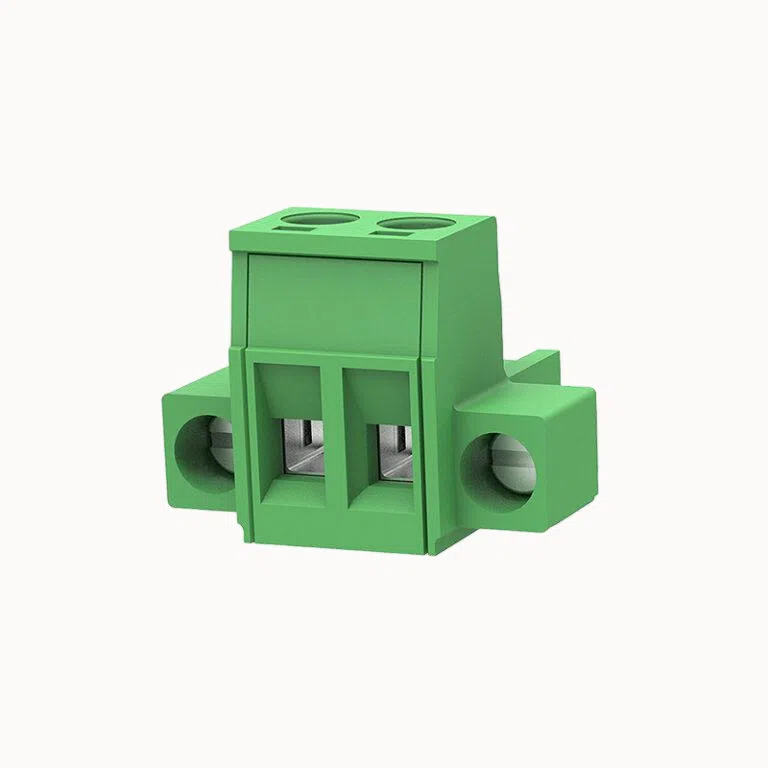

Wago Compatible Pluggable Terminal Block Screw Connection Type

Rated current:20A
Rated voltage（III/2）:320V
pitch:5.0mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Pitch Options: 5.00mm / 5.08mm

Straight terminal blocks with screw connection.

Replacement Compatibility

  • Compatible with: Phoenix Contact MSTB2.5/-ST-5.0
  • Alternative to Dinkle: 5ESDW
  • Replacement for Degson: 2EDGK

Product Advantages

  • ☑ Available in 5.0mm / 5.08mm for regional standards
  • ☑ Screw clamp terminals for field applications
  • ☑ Flame-resistant UL94-V0 housing

Application Scenarios

  • Power distribution units
  • Relay base connection
  • Programmable control systems

Connection capacity

Conductor cross section solid 1.0~2.5mm²
Conductor cross section flexible 1.0~2.5mm²
AWG 28~12AWG
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 20A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 0°
Pin arrangement Single row in a straight line
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M3
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 3.28
03P 5.21
04P 6.75
05P 8.2
06P 9.77
07P 11.32
08P 13.06
09P 14.33
10P 16.07
12P 19.58
14P 22.5
16P 26
FPC2.5-XX-500-00MAOSI.pdf
PDF Download
