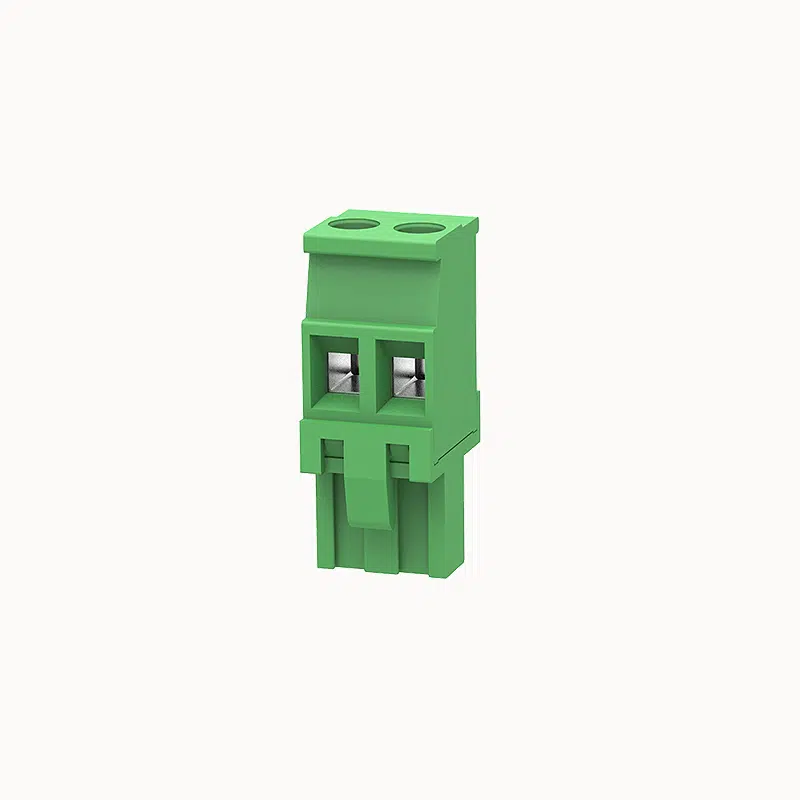

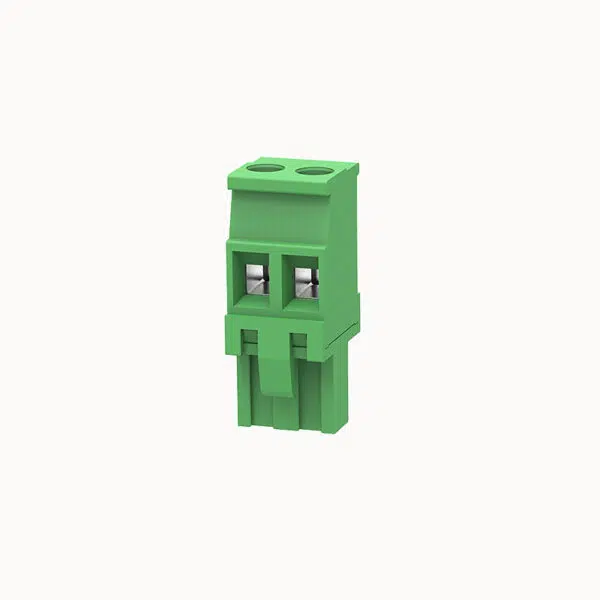

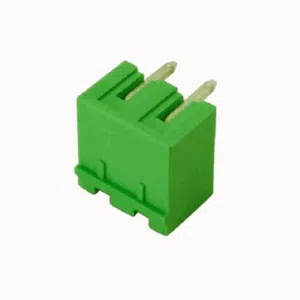

Wago Compatible Pluggable Terminal Block | Compact Housing Structure | FPC2.5-XX-508-03

Wago Compatible Pluggable Terminal Block Compact Housing Structure

Rated current:10A
Rated voltage （III/2）:320V
pitch:5.08mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Pitch Options: 5.00mm / 5.08mm

90° angled terminal block for compact PCB edge mounting.

Replacement Compatibility

  • Compatible with: Phoenix Contact MVSTBR2,5-ST-5.08
  • Alternative to Dinkle: 5ESDP
  • Replacement for Degson: 2EDGKA

Product Advantages

  • ☑ Right-angle output for tight board spacing
  • ☑ Safe screw locking for field service wiring
  • ☑ Ideal for vertical space-constrained devices

Application Scenarios

  • Slim PLCs
  • Sensor interfaces
  • Building control panels

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~2.5mm²
feeler gauge a x b／diameter 2.8mm x2.4mm/2.5mm
AWG 30~12AWG
Torque 0.5N.m
Strip length 7mm





Electrical parameters UL

Rated voltage (B) 600V
Rated voltage (C) 600V
Rated current (B) 15A
Rated current (C) 15A





Electrical parameters lEC

Rated voltage 1000V
Rated voltage(III/3) 1000V
Rated current 18A
Rated voltage(III/2) 1000V
Rated voltage(II/2) 1000V
Rated surge voltage(III/3) 8KV
Rated surge voltage(III/2) 8KV
Rated surge voltage(II/2) 8KV





ltem properties

Connection direction 90°
Pin arrangement Single row in a straight line
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M3
Pitch 7.62mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 3.559
03P 5.617
04P 7.675
05P 9.733
06P 11.667
07P 13.606
08P 15.556
09P 17.523
10P 19.472
11P 21.417
12P 23.364
13P 25.311
14P 27.258
15P 29.205
16P 31.152
17P 33.099
18P 35.046
20P 38.943
23P 44.781
24P 46.728
FPC2.5-XX-508-03AOSI.pdf
PDF Download
