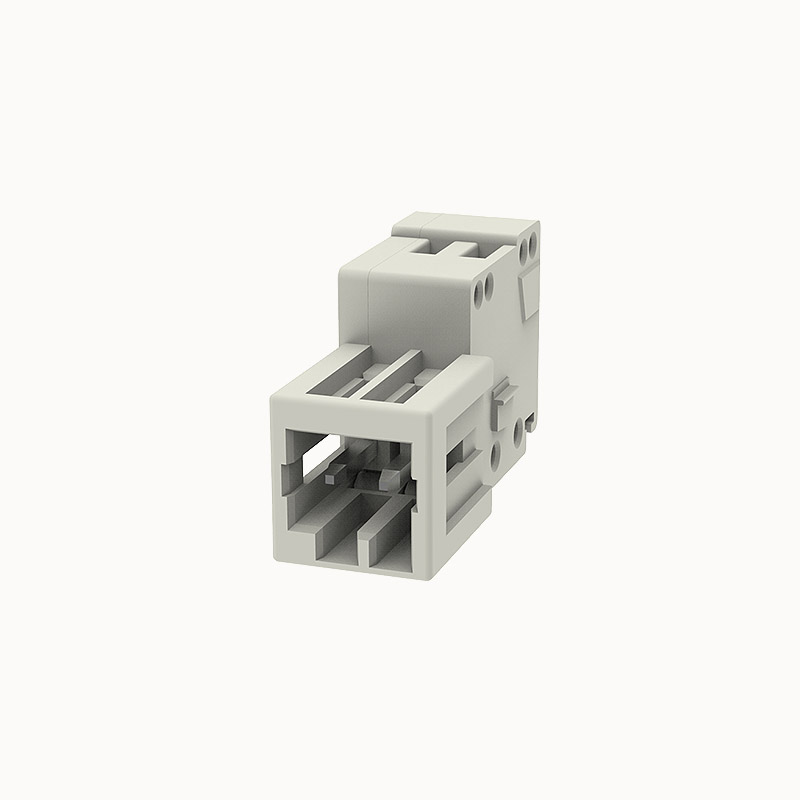

Wire-to-Board Plug | Panel-Mount Ready | FPM1.5-XX-250-24

Wire-to-Board Plug Panel-Mount Ready

Rated current:6A
Rated voltage (III/3):130V
pitch:2.5mm
Color:gray
Contact surface :Tin

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~0.5mm²
Conductor cross section flexible 0.2~0.5mm²
AWG 28~20AWG
Strip length 10mm





Electrical parameters UL

Rated voltage (B) 150V
Rated current (B) 4A





Electrical parameters lEC

Rated voltage 130V
Rated voltage(III/3) 130V
Rated current 6A
Rated surge voltage(III/3) 2.5KV





ltem properties

Connection direction 0°
Pin arrangement Single row in a straight line
Connection method spring-cage connection
Pitch 2.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40 °C ~ 105 °C（depending on derating curve）



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage 130V / /
Rated current 6A / /
Cross section 0.2~0.5 / /




UL parameters

Use group B C D
Rated voltage 150V / /
Rated current 4A / /
AWG 28~20 / /



FPM1.5-XX-250-24AOSI.pdf
PDF Download
