DIN Rail Splitter Terminal Module: Simplifies Power Distribution

Multi-circuit power distribution in industrial settings has long presented a significant challenge. Traditional wiring methods, often involving daisy-chaining wires, are notoriously time-consuming and introduce a higher risk of loose connections and potential faults. It not only slows down projects but also compromises the long-term reliability and safety of the entire system. Recognizing this critical problem, manufacturers have developed an elegant solution: the DIN rail splitter terminal module.

This innovative device transforms chaotic, multi-cable setups into a clean, plug-and-play system. By offering a one-to-many power distribution from a single source, these interface modules eliminates the need for cutting and splicing multiple cables, drastically simplifying installations and improving system integrity.

Part 1 3 Ways DIN Rail Splitters Simplify Power Distribution

1.Eliminates Daisy-Chaining

Multi-Channel DIN Rail Terminal Block replaces traditional daisy-chaining (where a single fault disrupts the entire circuit) with a star topology. Each output connects independently to a central point, eliminating single-point failures. If one circuit fails, others stay operational. This streamlined design simplifies wiring and improves reliability compared to complex serial connections.

2.Saves Installation Time

These modules like HM05-04D cut installation time by up to 60% thanks to:

• Pre-assembled blocks eliminating complex wiring
• Tool-less spring clamps enabling instant connections
• Color-coded terminals preventing phase matching errors

This plug-and-play design minimizes labor while ensuring reliable installations.

Model Number: HM05-04D

• Plastic material: PA66 UL94V-0
• Size(L*W*Hmm): 39*85.3*38.4mm
• Certification: UL,CE,ROSH,CQC,TUV
• Wire range: Can be 24-12AWG
• Max soldering: -40℃~±105℃/5Sec

Get a Quote Now

3.Enhanced System Reliability

DIN rail splitters deliver robust performance through:

• Vibration-resistant construction (IEC 60068-2-6 certified) for stable operation in harsh industrial environments
• Optimized current distribution that prevents voltage fluctuations and ensures steady power supply
• Integrated Fused DIN Rail Terminal Module for critical fault protection, featuring:
• Individual circuit fusing to isolate failures
• System-wide protection against electrical faults

This multi-layered approach guarantees maximum uptime and equipment safety.

Part 2 DIN Rail Junction Module: Working Mechanism

A DIN rail splitter terminal module simplifies and optimizes power distribution in electrical control panels by utilizing a central, high-conductivity busbar to efficiently route a single power input to multiple output terminals. This design eliminates the need for cumbersome daisy-chaining, reducing wiring complexity while improving reliability.

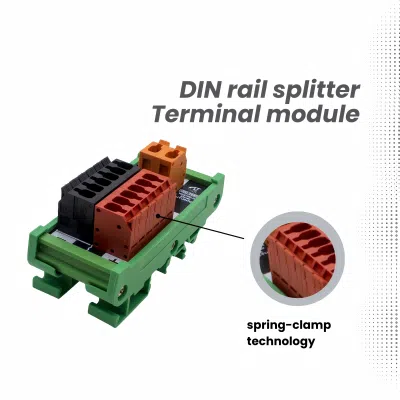

Additionally, our product features spring-clamp technology for tool-free, vibration-resistant connections that maintain stable contact, prevent heat buildup, and ensure uniform current distribution across all outputs.

What’s more, the module’s isolated outputs eliminate crosstalk, while its compact DIN rail design handles high currents. Transparent covers and marking areas simplify maintenance in industrial power distribution applications.

Part 3 Where Splitter Modules Deliver Maximum Impact

The junction terminal block excels in mission-critical applications requiring reliable power distribution:

• Industrial Control Panels

These modules simplify the complex wiring required to power multiple components. For instance, our HM05-08D distribution terminal block module, a 1-in-8-out device, is a perfect solution for industrial control panels. It can efficiently distribute 24VDC from a single power source to over 20 PLC input and output modules, dramatically reducing clutter and enhancing troubleshooting efficiency.

Model Number: HM05-08D

• Plastic material: PA66 UL94V-0
• Size(L*W*Hmm): 39*85.3*38.4mm
• Certification: UL,CE,ROSH,CQC,TUV
• Wire range: Can be 24-12AWG
• Max soldering: -40℃~±105℃/5Sec

Get a Quote Now

• Renewable Energy Systems

DIN Rail mountable splitter terminals are ideal for solar combiner boxes, where they efficiently manage the parallel connections of multiple solar panel strings. This ensures balanced current flow and simplifies maintenance.

• OEM Machinery

OEM Machinery with modular components benefits significantly from splitter modules, which enable quick-disconnect capabilities. This makes it faster and easier to assemble, reconfigure, or service equipment without extensive rewiring, streamlining production and field maintenance.

In a word, fused DIN rail terminal modules optimize power distribution in industrial applications, simplifying complex panel wiring, renewable energy interconnections, and modular machinery designs.
