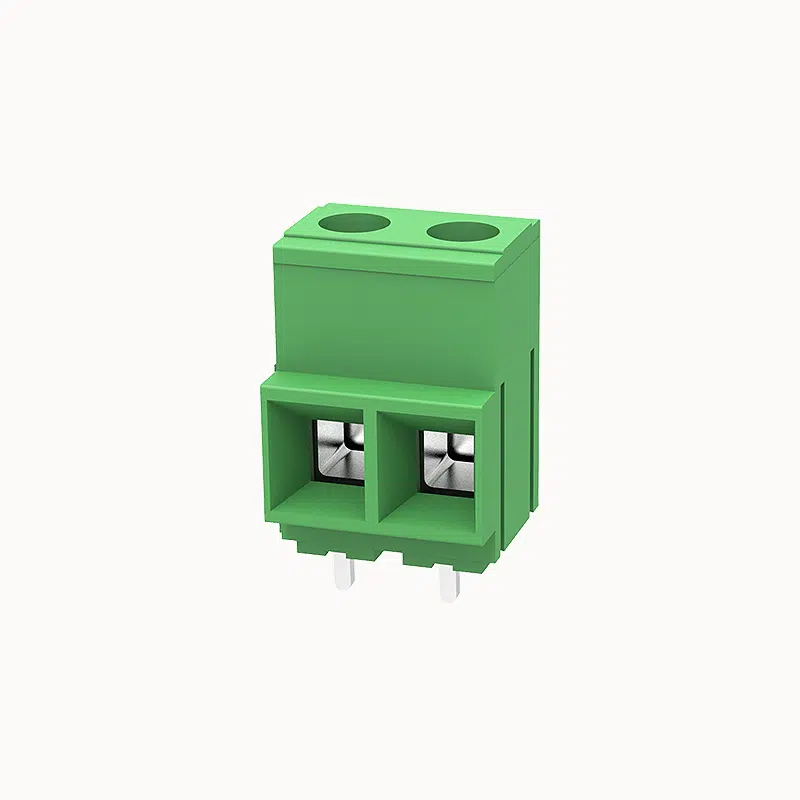

Screw Terminal Block Factory Price Available

Rated current: 57A
Rated voltage (III/2):750V
Cross section:4-10mm²
pitch:10.16mm
connector method:Screw connector with tension sleeve
Color:green
Contact surface :Tin

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 4.0~10mm²
Conductor cross section flexible 4.0~10mm²
AWG 20~6AWG
Torque 1.8N.m
Strip length 11mm





Electrical parameters UL

Rated voltage (B) 300V





Electrical parameters lEC

Rated voltage 750V
Rated current 57A
Rated voltage(III/2) 750V
Rated power frequency voltage(1min) 3KV





ltem properties

Type of installation PCB welding
Pin arrangement Double-row of misalignment
Connection method Screw connection
Screwdriver slotted-phillips screwdriver
screw thread M4.5
Pitch 10.16mm
Number of potentials 2-12P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅲa
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

FET4-XX-1016-00AOSI.pdf
PDF Download
